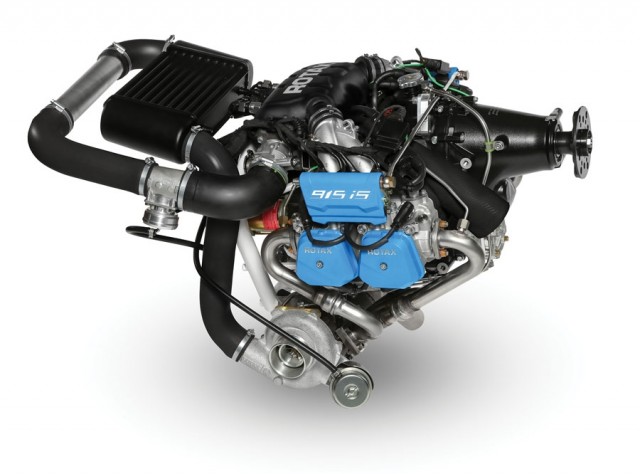

915iS - 141HK

Artikkelnr.: R915_iS

915 IS A | ISC A | IS C24 | ISC C24 141 HP

NOK519 080,00 inkl. mva.
Ønskeliste

Produktinfo

NOTE - Price is for model 2 configuration NON-CERTIFIED.
Dynamic iS engine with best power-to-weight ratio, full take-off power and a service ceiling up to 23.000 feet.
  • Four-stroke piston engine with four liquid and air-cooled cylinders
  • Redundant electronic fuel injection and ignition, eco mode
  • Turbocharger, stainless steel exhaust
  • Dry sump forced lubrication with separate oil tank, automatic adjustment by hydraulic valve tappets
  • Engine management system (EMS)
  • Electric starter (12 or 24 volt)
  • Propeller speed reduction gearbox
  • Air intake system / intercooler
  • TBO 1,200 hrs
  • Maximum operating altitude 23.000 feet
  • Customizable version available (engine comes with neutral black covers and without logo branding, ready to get your very individual design)
  • 24V power supply delivering up to 800W
ENGINE DATA
WEIGHT kg lb
Engine with propeller speed reduction gearbox i = 2,54 with overload clutch, turbocharger, intercooler, exhaust system 82.2 181.2
Engine suspension frame 2.0 4.4
External alternator 3.0 6.6
Air guide hood 0.4 0.8
Fuel pumps assy 1.6 3.5
PERFORMANCE
  104kW 141 hp
  **99.0kW 135 hp
BORE
84.0 mm 3.31 in
STROKE
61.0 mm 2.4 in
DISPLACEMENT
1352 cm³ 82.6 cu in
FUEL*

min. MON 85 RON 95 min. AKI 91

Engine performance may vary depending on, among other things, general conditions, ambient temperature and altitude.

* leaded, unleaded, AVGAS 100LL, Ethanol 10
** max. continuous power at 5500 1/min
*** MOGAS, no hydraulic governor

iS: ASTM compliant | iSc: certified according to EASA CS-E
