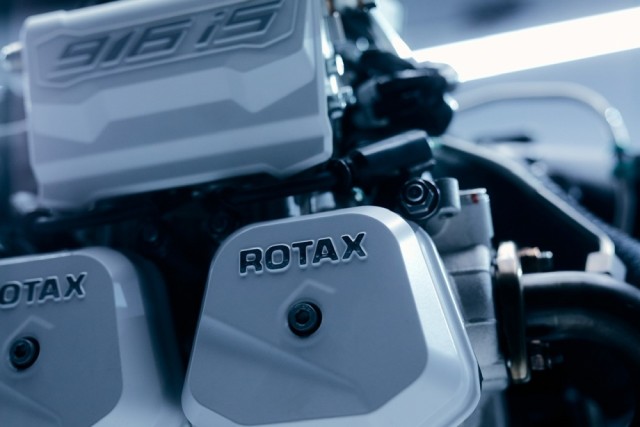

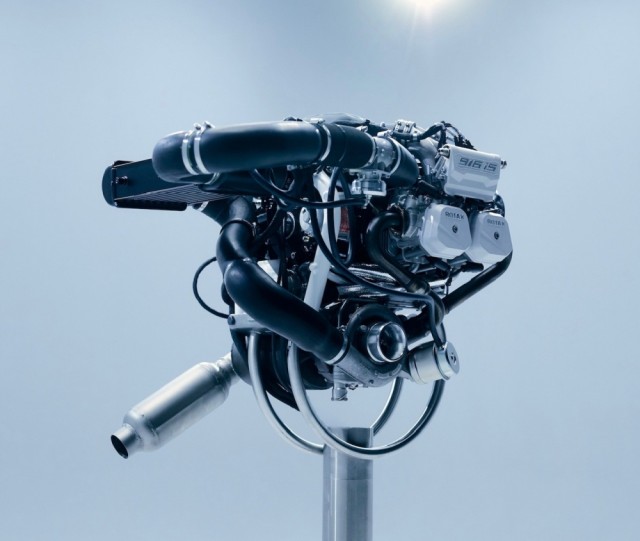

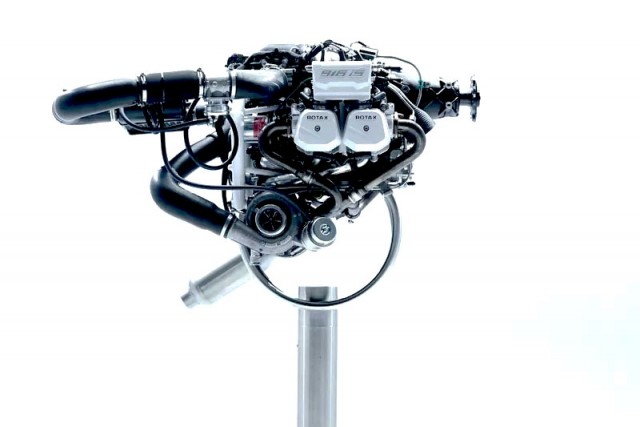

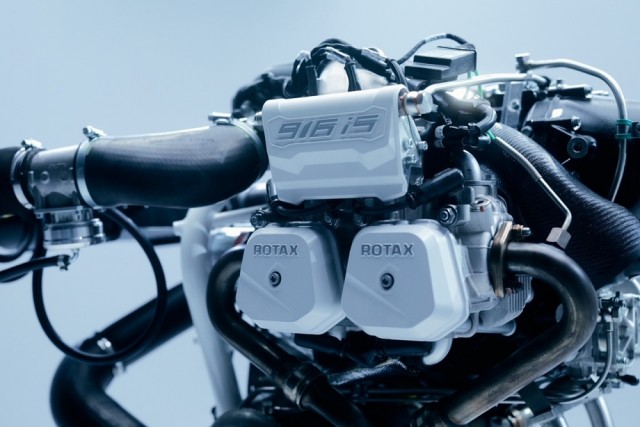

Rotax 916iS (160HP)

Artikkelnr.: R915iS

iS 2 €40.777 \ iS 3 €40.777

NOK1,00 inkl. mva.
Ønskeliste

Produktinfo

Dynamic, turbocharged iS engine with best power-to-weight ratio, full take-off power, and a maximum operating altitude up to 23,000 feet.
  • Four-stroke piston engine with four liquid and air-cooled cylinders
  • Redundant electronic fuel injection and ignition, eco mode

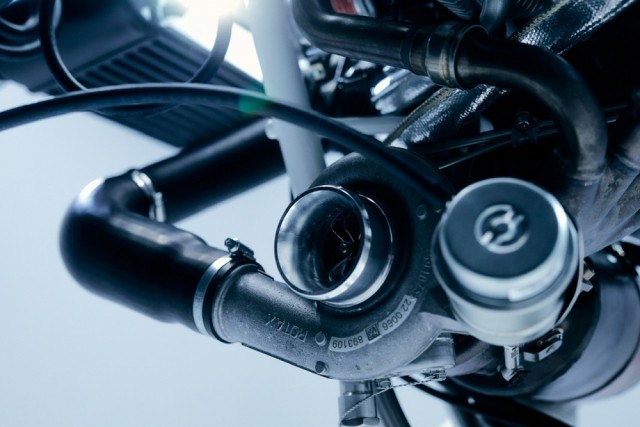

  • Turbocharger, stainless steel exhaust
  • Dry sump forced lubrication with separate oil tank, automatic adjustment by hydraulic valve tappets
  • Engine management system (EMS)
  • Electric starter (12 or 24 Volt)
  • Propeller speed reduction gearbox

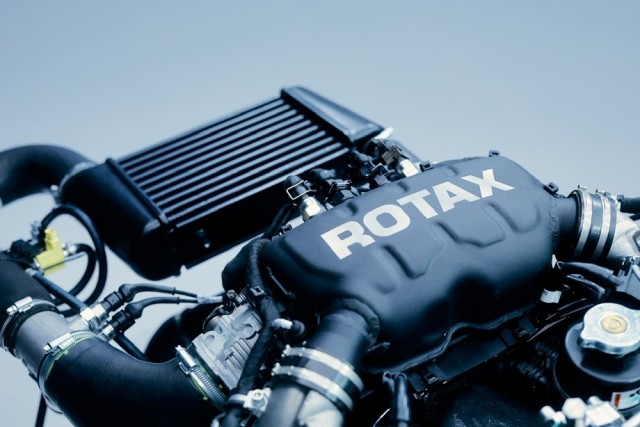

  • Intercooler
  • TBO 2,000 hrs
  • Maximum operating altitude 23,000 feet
  • Critical altitude 15,000 feet (maximum continuous power)
ENGINE DATA
WEIGHT kg lb
Engine with propeller speed reduction gearbox i= 2,54 with overload clutch, turbocharger, intercooler, exhaust system 85.8 189
Engine suspension frame 2.0 4.4
External alternator 3.0 6.6
Air guide baffle 0.4 0.8
PERFORMANCE
117 kW 160 hp 5800 1/min
**101 kW 137 hp 5500 1/min
TORQUE
193 Nm 142 ft lb 5800 1/min
175 Nm 129 ft lb 5500 1/min
BORE
84.0 mm 3.31 in
STROKE
61.0 mm 2.4 in
DISPLACEMENT
1352 cm³ 82.6 cu in
FUEL*
min. MON 85 RON 95 min. AKI 91

Engine performance may vary depending on, among other things, general conditions, ambient temperature and altitude.

* leaded, unleaded, AVGAS 100LL, Ethanol 10

** max. continuous power at 5500 1/min

iS: ASTM compliant | iSc: certified according to EASA CS-E
