CHT Gauges for ROTAX 912ULS (100 HP) / 914

Artikkelnr.: IM-539

57mm Diameter Units ºC

NOK1 018,00 inkl. mva.
Ønskeliste
  • Produktinfo
  • Specs

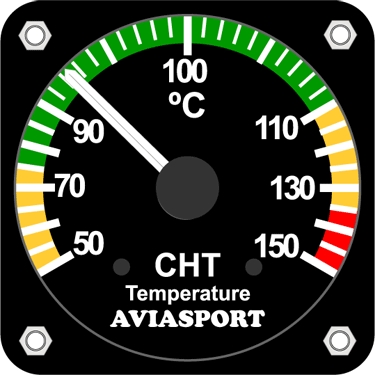

  • The IM-539 instruments have been designed especially to measure the Cylinder Heat Temperature (CHT) in Rotax® engines 912ULS/914.


  • The IM-539 is available in 57 mm diameter.


  • The instruments use a pointer thats turns 240º, witch gives them great resolution.


  • Their display areas are divided  into red, green and yellow zones in line with the ROTAX limits.

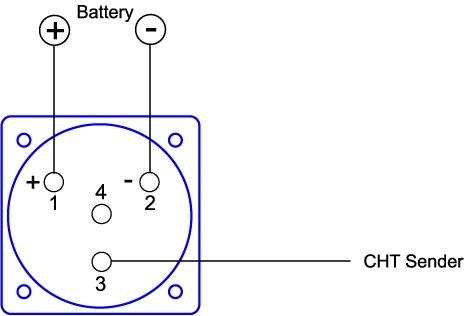

  •  This instrument Work with the VDO sender that is build in the ROTAX 912./914

Case Plastic
Weight 220g
Suitable for VDO Sender
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 50..150º C
Subdivision scale 1ºC each
Max. Deviation 2%

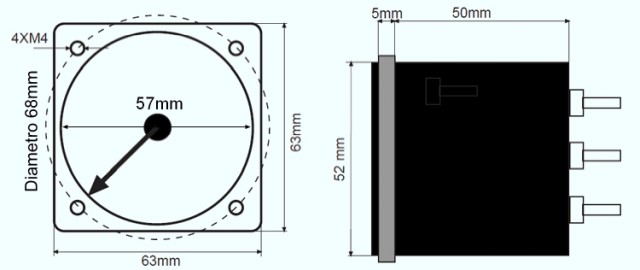

Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.

Datasheet_IM_539.pdf
