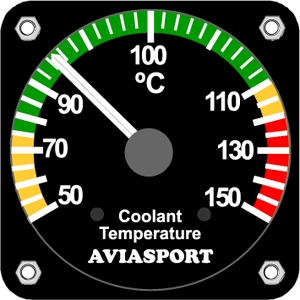

Coolant Temperature gauge for Rotax engines 912/914

Artikkelnr.: IM-511

Diameter: 57mm (2 1/4 inch) Units: ºC

NOK1 018,00 inkl. mva.
Ønskeliste
  • Produktinfo
  • Specs

  • Specifically designed to measure the coolant temperature in the ROTAX engine 912/914 with red , green and yellow zones.


  • In compliance with the Service Bulletin SB-912-066 , the red zone begin to 120ºC.


  • The IM-511 is available in 57 mm diameter.(2 1/4 inch)


  • The instruments use a pointer thats turns 240º, witch gives them great resolution.

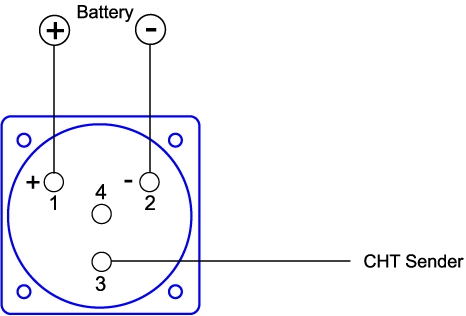

  • This instrument work with the VDO sender that is build in the ROTAX 912/914.

Case Plastic
Weight 220g
Suitable for VDO Sender
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 50..150º C
Subdivision scale 1ºC each
Max. Deviation 2%

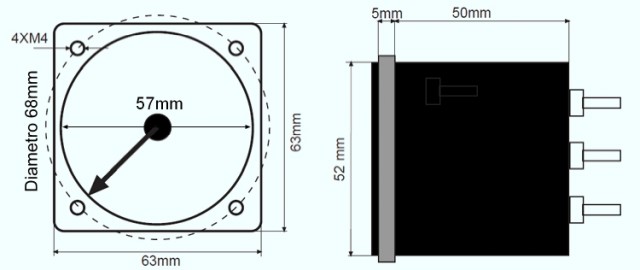

Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.
