ENGINE TACHOMETER FOR ROTAX 912/914

Artikkelnr.: IM-3108

57mm Diameter

NOK1 307,00 inkl. mva.
Ønskeliste
  • Produktinfo
  • Specs

  • The IM-3108 instruments have been designed especially to measure the RPM in Rotax® engines 912 and 914.

  • The IM-3108 is available in 57 mm diameter.

  • The instruments have been designed to work with both 12V and 24V systems.

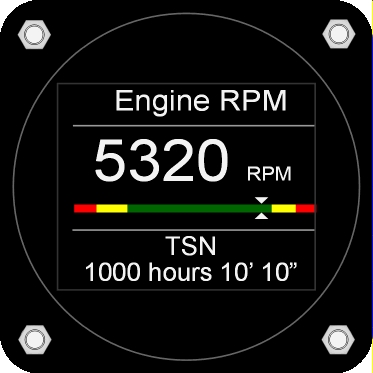

  • A  TFT colour screen show the engine RPM. The screen is readable at direct sunlight.

  • The screen show the Hours Minutes and seconds. The hourmeter  only run if the engine is runing at more than 1.800 RPM.

Case Plastic
Weight 120g
Suitable for Rotax 912/914 Pick-up
Power Supply 10..30VDC
Power Current  0.2 Amp. Max.
Scale 0..7000 rpm
Screen Full Color TFT 1.8" readable at direct sunlight.
Max. Deviation 1%

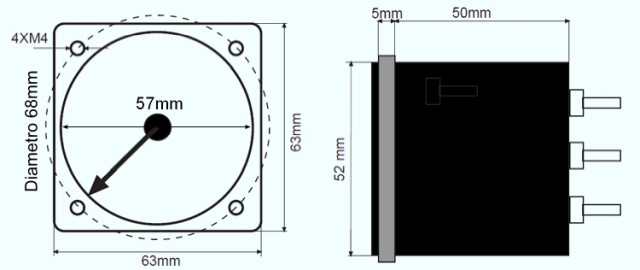

Dimensions See sketch
Calibration

Calibrated by the manufacturer prior to shipment.
