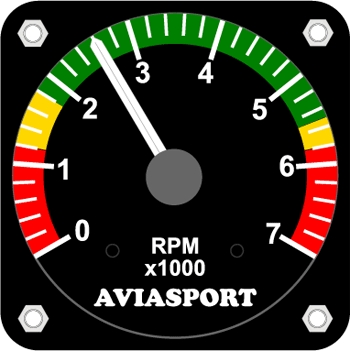

ENGINE TACHOMETER FOR ROTAX 912/914

Artikkelnr.: IM-105

57mm Diameter

NOK1 210,00 inkl. mva.
Ønskeliste
  • Produktinfo
  • Specs

  • The IM-105 instruments have been designed especially to measure the RPM in Rotax® engines 912 and 914.


  • The IM-105 is available in 57 mm diameter.


  • The instruments have been designed to work with both 12V and 24V systems.


  • The minimum instrumentation requirements  for the BRP_ROTAX® four stroke engines include a gauge for continuous RPM monitorization.

Case Plastic
Weight 220g
Suitable for Rotax 912/914 Pick-up
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 0..7000 rpm
Subdivision scale 200 rpm each
Max. Deviation 2%
Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.

Datasheet_IM_105.pdf
