Fuel pressure Gauges for ROTAX 912

Artikkelnr.: IM-567

52mm Diameter Units Bar For UMA 7 PSI sender

NOK1 018,00 inkl. mva.
Ønskeliste
  • Produktinfo
  • Specs

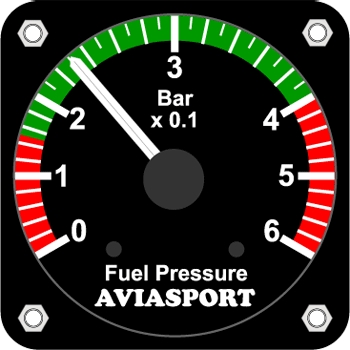

  • The IM-567 instruments have been designed especially to measure fuel pressure in Rotax® engines 912.


  • The IM-567 is available in 57 mm diameter.


  • This instruments use a pointer thats turns 240º, witch gives them great resolution.


  • The instruments have been designed to work with both 12V and 24V systems.


  • Unlike mechanical instruments, the electronic instruments use a high precision sensor to be installed close to the engine, preventing fuel lines in the cockpit.

Case Plastic
Weight 220g
Suitable for UMA 7 PSI Sender
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 0..0,6 Bar
Subdivision scale 0,001 Bar
Max. Deviation 1%

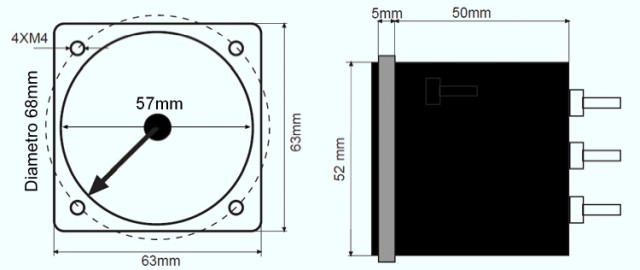

Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.

Datasheet_IM_567.pdf
