OIL PRESSURE FOR ROTAX 912/914 FOR 4..20mA SENDER

Artikkelnr.: IM-542

Diameter: 57mm Units : BAR

NOK1 032,00 inkl. mva.
Ønskeliste
  • Produktinfo
  • Specs

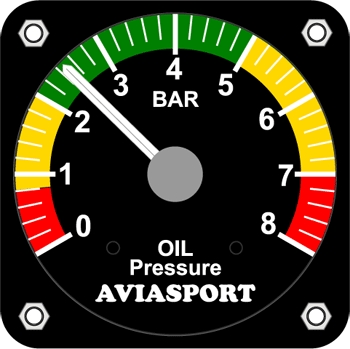

  • The IM-542 instruments have been designed especially to measure the Oil pressure in Rotax® engines 912/914 (Series).


  • The IM-542 is available in 57 mm diameter.


  • The instruments have been designed to work with both 12V and 24V systems.


  • The minimum instrumentation requirements  for the BRP_ROTAX® four stroke engines include a gauge for continuous Oil Pressure monitorization.

Case Plastic
Weight 220g
Suitable for Rotax 912/914
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 0..8 BAR
Subdivision scale 0.2 BAR
Max. Deviation 2%

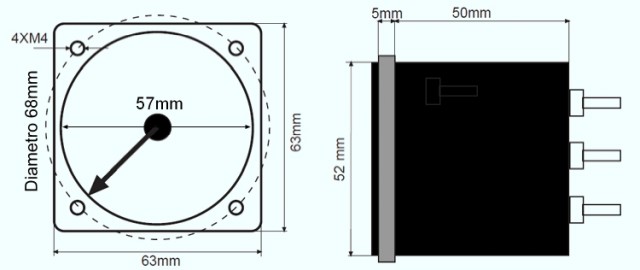

Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.

Datasheet_IM_532.pdf
