OIL TEMPERATURE FOR ROTAX 912ULS/914 ºC

Artikkelnr.: IM-528

912ULS/914 57mm -ºC

NOK1 018,00 inkl. mva.
Ønskeliste
  • Produktinfo
  • Specs

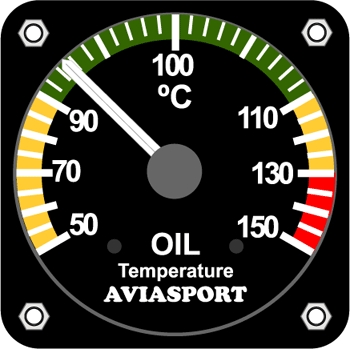

  • The IM-528 instruments have been designed especially to measure the Oil Temperature in Rotax® engines 912ULS (100 HP) & 914.


  • The IM-528 is available in 57 mm diameter.


  • The instruments have been designed to work with both 12V and 24V systems.


  • The minimum instrumentation requirements  for the BRP_ROTAX® four stroke engines include a gauge for continuous Oil Temperature monitorization.

Case Plastic
Weight 220g
Suitable for Rotax 912ULS/914
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 50..150 ºC
Subdivision scale 1ºC
Max. Deviation 2%

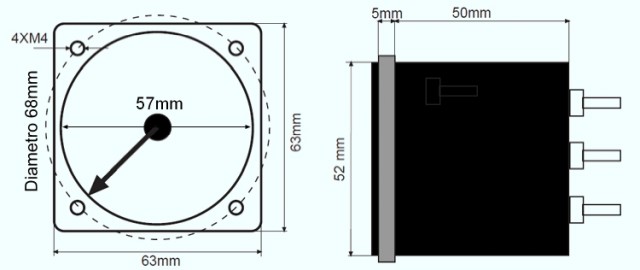

Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.

Datasheet_IM_528.pdf
