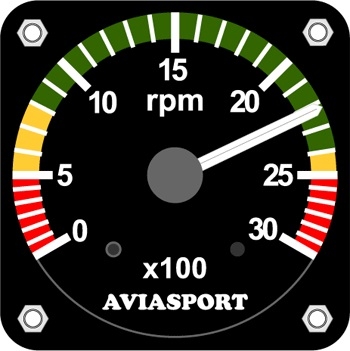

Prop Techometer for Rotax 912/914 57mm

Artikkelnr.: IM-535

NOK1 797,00 inkl. mva.
Ønskeliste

Produktinfo

ENGINE TACHOMETER FOR ROTAX 912ULS/914
57mm Diameter

  • The IM-535 instruments have been designed especially to measure the RPM in Rotax® engines 912ULS/914, with a gearbox ratio of 1/2,43.


  • This instrument taken the signal from the pick-up of the engine and dividing it by the gearbox ratio. The result is that show the propeller RPM.


  • The IM-535 is available in 57 mm diameter.


  • The instruments have been designed to work with both 12V and 24V systems.


  • The minimum instrumentation requirements  for the BRP_ROTAX® four stroke engines include a gauge for continuous RPM monitorization.


Technical data
Case Plastic
Weight 220g
Suitable for Rotax Engines with a gearbox ratio of 1/2,43.
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 0..3000 rpm
Subdivision scale 100 rpm each
Max. Deviation 2%
Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.
Wire Connections
Dimensions
