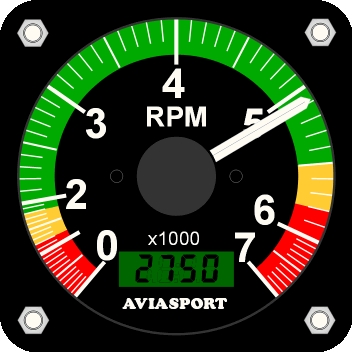

Tachometer for ROTAX 912/914 with Hourmeter

Artikkelnr.: IM-1106

57mm Diameter

NOK1 447,00 inkl. mva.
  • Produktinfo
  • Specs
  • The IM-1106 instruments have been designed especially to measure the RPM in Rotax® engines 912 and 914.

  • The IM-1106 is available in 57 mm diameter. (2 1/4 Inch)

  • The instruments have been designed to work with both 12V and 24V systems.

  • The minimum instrumentation requirements  for the BRP_ROTAX® four stroke engines include a gauge for continuous RPM monitorization.

  • The IM-1106 has a digital hourmeter. The hourmeter begin to count when the engine run over 1.800 rpm.

  • At less of 1800 rpm , the display show the hours , minutes and seconds.

  • At more than 1.800 rpm, the display show the RPM.

  •  The display is Sunread

Case Plastic
Weight 220g
Suitable for Rotax 912/914 Pick-up
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 0..7000 rpm
Subdivision scale 100 rpm each
Max. Deviation 1%

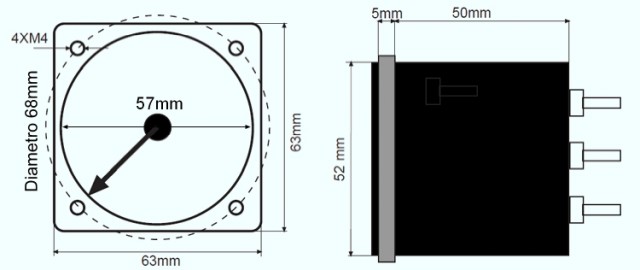

Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.
