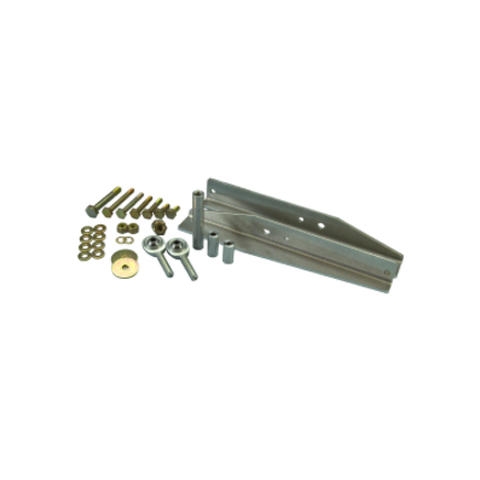

Servo Mounting Kit, Pitch - RV-4/8

Artikkelnr.: 101020-002

RV-4, RV-8 Pitch

NOK1 285,00 inkl. mva.

Produktinfo

(fits both the newer and older RV-8 fuselage kits)

  • 100836-000 x 2 Large Male Rod End
  • 100874-000 x 1 RV4,8 Pitch Bracket - Right
  • 100874-001 x 1 RV4,8 Pitch Bracket - Left
  • 100966-000 x 1 Aluminum Pushrod Tube - 2.25"
  • 100975-002 x 2 AN315-4R Jam Nut
  • 100976-011 x 2 AN365-1032A Nylon Insert Locknut
  • 100977-000 x 2 AN970-3 Large Flat Washer
  • 100978-003 x 8 AN960-10 Small Flat Washer *(1)
  • 100979-002 x 2 MS35333-39 #10 Internal Star Washer
  • 100981-001 x 1 AN3H-4A Bolt – ½”
  • 100981-002 x 1 AN3H-5A Bolt – 5/8” *
  • 100981-005 x 1 AN3H-10A Bolt – 1”
  • 100981-006 x 1 AN3H-11A Bolt – 1 1/8”
  • 100981-008 x 1 AN3H-13A Bolt – 1 3/8”
  • 100981-010 x 1 AN3H-15A Bolt – 1 5/8” *
  • 100982-003 x 1 Aluminum Spacer - 0.750"
  • 100982-004 x 1 Aluminum Spacer – 0.875” *
  • 101197-010 x 1 AN4H-15A Bolt – 1 5/8” *

* Used with “RV-8 Fuselage Kit – 1”, shipped post-September 2006
