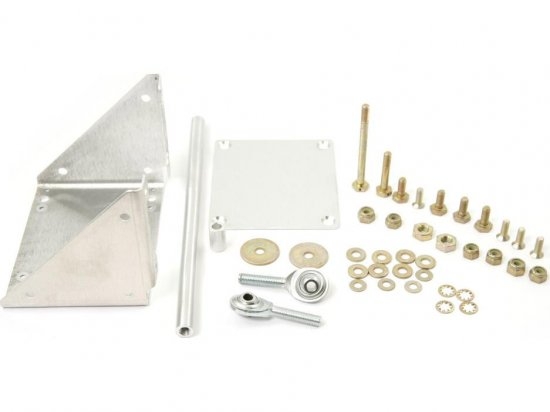

SERVO MOUNTING KIT - RV-6 ROLL (FUSELAGE)

• 100836-000 x 2 Large Male Rod End
• 100866-000 x 1 RV6 Roll Bracket
• 100867-000 x 1 RV6 Roll Plate
• 100966-005 x 1 Aluminum Pushrod Tube - 7.5"
• 100975-002 x 2 AN315-4R Jam Nut
• 100976-007 x 4 AN365-832A Nylon Insert Locknut
• 100976-011 x 2 AN365-1032A Nylon Insert Locknut
• 100977-000 x 2 AN970-3 Large Flat Washer
• 100978-002 x 4 AN960-8 Small Flat Washer
• 100978-003 x 7 AN960-10 Small Flat Washer
• 100979-002 x 4 MS35333-39 #10 Internal Star Washer
• 100980-008 x 4 MS24693-50 Countersunk Machine Screw
• 100981-000 x 4 AN3H-3A Bolt - 3/8"
• 100981-005 x 1 AN3H-10A Bolt - 1"
• 100981-014 x 1 AN3H-21A Bolt – 2 1/8"
• 100982-002 x 1 Aluminum Spacer - 0.600"

RV6 Roll Kit Instructions
