RV-10 PITCH SERVO (TORQUE-ENHANCING LINEAR ACTUATOR) + MOUNTING KIT PACKAGE

Artikkelnr.: 101098-008

RV-10 Pitch, wing mounted

NOK12 782,00 inkl. mva.
Ønskeliste

Produktinfo

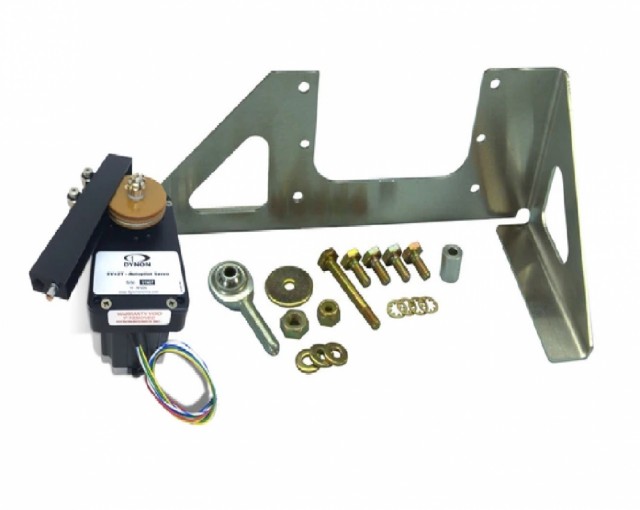

Includes Servo Mounting Kit - RV-10 Pitch: 101020-007, SV42T (linear actuator)



  • 100836-000 x 1 Large Male Rod End
  • 100973-002 x 1 RV10 Pitch Bracket for Linear Actuator
  • 100975-002 x 1 AN315-4R Jam Nut
  • 100976-011 x 1 AN365-1032A Nylon Insert Locknut
  • 100977-000 x 1 AN970-3 Large Flat Washer
  • 100978-003 x 3 AN960-10 Small Flat Washer
  • 100979-002 x 4 MS35333-39 #10 Internal Star Washer
  • 100981-000 x 4 AN3H-3A Bolt – 3/8”
  • 100981-009 x 1 AN3H-14A Bolt – 1 ½”
  • 100982-001 x 1 Aluminum Spacer – 0.485”

RV10 Pitch Kit with LA Instructions Rev E
