RV-6 ROLL SERVO + MOUNTING KIT PACKAGE

Artikkelnr.: 101098-001

RV-6 Roll, fuselage mounted

NOK12 782,00 inkl. mva.
Ønskeliste

Produktinfo

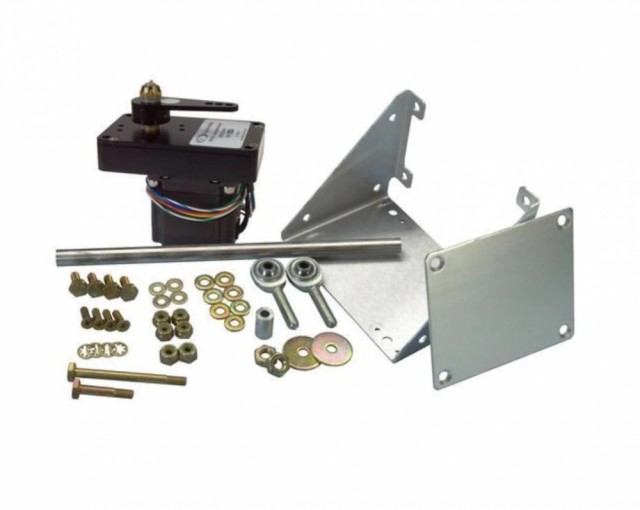

Includes Servo Mounting Kit - RV-6 Roll (fuselage): 101020-001, SV32L (long output arm)



  • 100836-000 x 2 Large Male Rod End
  • 100866-000 x 1 RV6 Roll Bracket
  • 100867-000 x 1 RV6 Roll Plate
  • 100966-005 x 1 Aluminum Pushrod Tube - 7.5"
  • 100975-002 x 2 AN315-4R Jam Nut
  • 100976-007 x 4 AN365-832A Nylon Insert Locknut
  • 100976-011 x 2 AN365-1032A Nylon Insert Locknut
  • 100977-000 x 2 AN970-3 Large Flat Washer
  • 100978-002 x 4 AN960-8 Small Flat Washer
  • 100978-003 x 7 AN960-10 Small Flat Washer
  • 100979-002 x 4 MS35333-39 #10 Internal Star Washer
  • 100980-008 x 4 MS24693-50 Countersunk Machine Screw
  • 100981-000 x 4 AN3H-3A Bolt - 3/8"
  • 100981-005 x 1 AN3H-10A Bolt - 1"
  • 100981-014 x 1 AN3H-21A Bolt – 2 1/8"
  • 100982-002 x 1 Aluminum Spacer - 0.600"

RV6 Roll Kit Instructions Rev F
