Servo/Mounting Kit Package, Roll - RV-7/8

Artikkelnr.: 101098-002

RV-7, RV-8 Roll, wing mounted

NOK12 782,00 inkl. mva.

Produktinfo

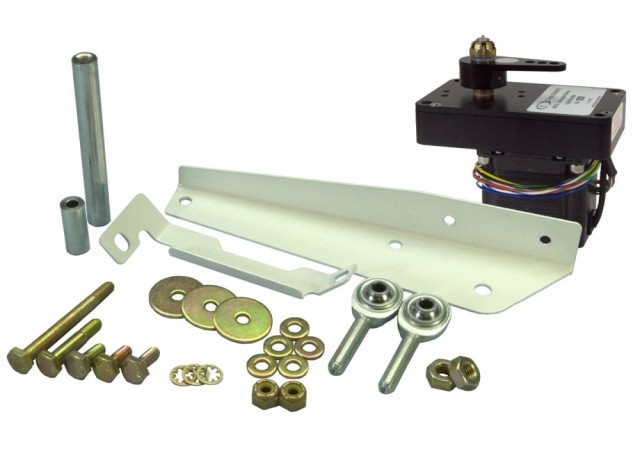

Includes Servo Mounting Kit - RV-7/8/10 Roll (right wing): 101020- 003, SV32 (standard output arm)



  • 100836-000 x 2 Large Male Rod End
  • 100870-001 x 1 RV7,8,9,10 Right Roll Bracket
  • 100872-000 x 1 RV7,8,9,10 Right Support Bracket
  • 100966-008 x 1 Aluminum Pushrod Tube - 3.0"
  • 100975-002 x 2 AN315-4R Jam Nut
  • 100976-011 x 2 AN365-1032A Nylon Insert Locknut
  • 100977-000 x 2 AN970-3 Large Flat Washer
  • 100978-003 x 7 AN960-10 Small Flat Washer
  • 100979-002 x 3 MS35333-39 #10 Internal Star Washer
  • 100981-000 x 3 AN3H-3A Bolt - 3/8"
  • 100981-005 x 1 AN3H-10A Bolt - 1"
  • 100981-012 x 1 AN3H-17A Bolt - 1 7/8"
  • 100982-004 x 1 Aluminum Spacer - 0.875"

RV7/8/10 Roll Kit Instructions Rev H
