SONEX / WAIEX PITCH SERVO + MOUNTING KIT PACKAGE

Artikkelnr.: 101098-009

Sonex, Waiex

NOK12 782,00 inkl. mva.
Ønskeliste

Produktinfo

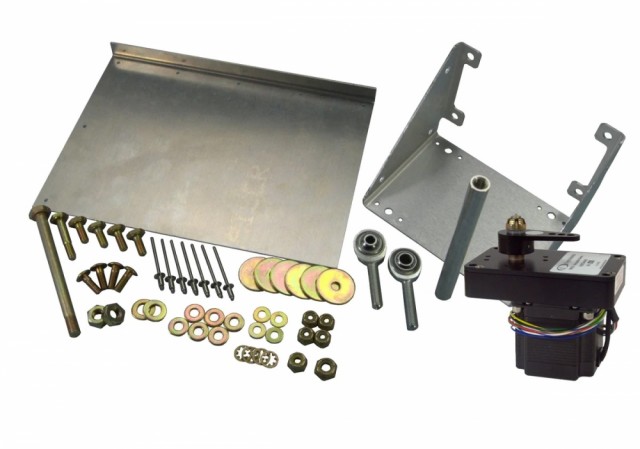

Includes Servo Mounting Kit - Sonex / Waiex Pitch: 101863-000, SV32 (standard output arm)



  • 100866-000 x 1 Servo Mounting bracket
  • 100836-000 x 1 Male Rod End 3/16” ID
  • 100966-002 x 1 Tube Aluminum Pushrod – 4.0”
  • 100975-002 x 2 AN315-4R Jam Nut
  • 100976-007 x 4 AN365-832A Nylon Insert Locknut
  • 100976-011 x 1 AN365-1032A Nylon Insert Locknut
  • 100977-000 x 6 AN970-3 Large Flat Washer
  • 100978-002 x 4 AN960-8 Small Flat Washer #8
  • 100978-003 x 6 AN960-10 Small Flat Washer
  • 100978-004 x 2 AN960-416 1/4" Flat Washer
  • 100979-002 x 4 MS35333-39 #10 Internal Star Washer
  • 100981-000 x 4 AN3H-3A Bolt - 3/8"
  • 100981-005 x 1 AN3H-10A Bolt - 1"
  • 101197-022 x 1 Bolt Hex #1/4-28 3-5/32” AN4-31A
  • 101443-000 x 1 Male Rod End 1/4” ID
  • 101612-000 x 1 Pitch Servo Floor Plate
  • 101843-000 x 1 AN364-428A Nylon Insert Locknut
  • 101877-000 x 7 Cherry N Rivets - CCP-42
  • 101880-000 x 4 Screw Washer Head AN525-832R8

Sonex-Waiex Pitch Kit Instructions Rev A
