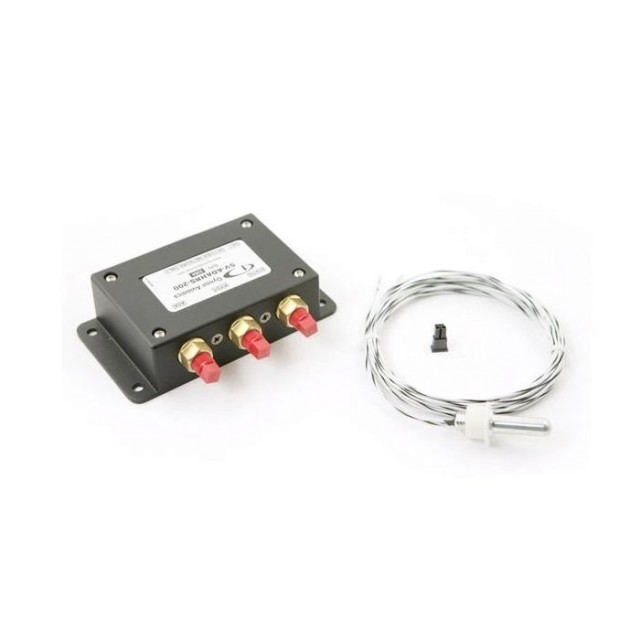

SV-ADAHRS-200 Primary ADAHRS Module, with OAT

(Includes SV-ADAHRS-200 and SV-OAT-340)

SkyView ADAHRS Modules: ADAHRS stands for Air Data/Attitude/Heading Reference System. The SkyView ADAHRS module uses MEMS sensor technology to accurately measure inertial, magnetic, and air data. These provide the data necessary to drive the Artificial Horizon/Synthetic Vision, Airspeed, Altitude, Vertical Speed, Slip, Turn Rate, Angle of Attack, and Gyro-Stabilized Heading. Additionally, Outside Air Temperature is obtained from the SV-OAT-340 Sensor which is connected to the ADHARS Module.

Dynon sells a primary ADAHRS model (SV-ADAHRS-200) and a backup model (SV-ADAHRS-201). The primary and backup models are identical in functionality, however you must have at least one SV-ADAHRS-200 in the system in order for the SV-ADAHRS-201 to function.

 OAT Outside Air Temperature: A SV-OAT-340 Outside Air Temperature Sensor is included with each SV-ADAHRS-200/201.

Connections:
3 - Pneumatic ports for Pitot, Static, and Angle of Attack
1 - 9-Pin DIN Connector for the SkyView Network
2 - 2-Pin Connector for SV-OAT-340 Sensor

More information regarding the ADAHRS can be found here.
