SV-MAG-236 Remote Magnetometer

SV-MAG-236 Remote Magnetometer for SkyView

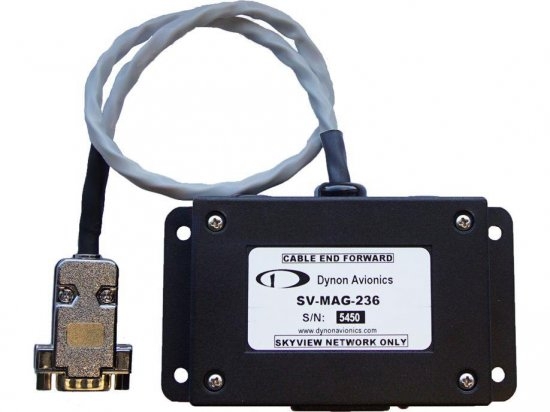

The SV-MAG-236 Remote Magnetometer was developed for situations where the SV-ADAHRS-200/201’s integrated magnetometer cannot be located in an area free of magnetic disturbances while satisfying the other installation constraints (such as proximity to center of gravity) of the SV-ADAHRS-200/201. The SV-MAG-236 is particularly recommended for steel-frame aircraft.

To minimize the possibility of magnetic interference from the connector assembly, the SV-MAG-236 uses an 18-inch integral cable – the connector is remoted from the magnetometer sensor. A maximum of one SV-MAG-236 can be used in a SkyView system.

Design Considerations: A SkyView Network Cable is used to connect a Remote Magnetometer Module to a Display. One Remote Magnetometer Module will provide data to as many Displays as are connected in the SkyView System. However, when you install a secondary ADAHRS (SV-ADAHRS-201) only one Remote Magnetometer needs be installed.

Connections:
1 - 9-Pin DIN Connector for the SkyView Network
2 - 2-Pin Connector for SV-OAT-340 Sensor

Installation Location - Compass: The ADAHRS Modules include a Magnetometer (Remote Compass). This means that it needs to be located in magnetically benign location, away from high current wires and moving aircraft components that contain a ferrous material.
