FlyBox Vigilus EP integration

Artikkelnr.: DBMIVIGILUSKIT

Vigilus EP (Edge Performance engines)

NOK16 932,50 inkl. mva.
Ønskeliste
  • Produktinfo
  • Specs

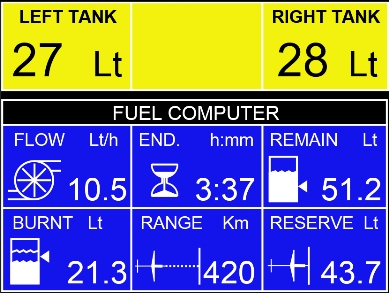

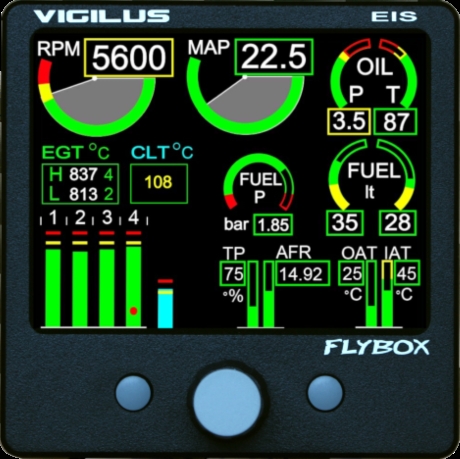

VIGILUS, combined with the remote module, is the instrument that allows a complete management of the engine parameters and on board fuel. It can be installed in a 3-1/8” (80mm) standard hole.

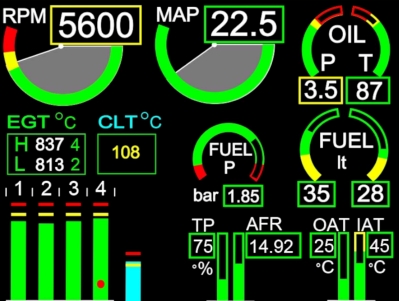

All the available data are divided into more pages, with graphical interface designed for maximum readability.
This version suite the Edge Performance engines and fully configurable in terms of alarms and audio alerts, that are activated as soon as a parameter exceeds the minimum or maximum limit set.

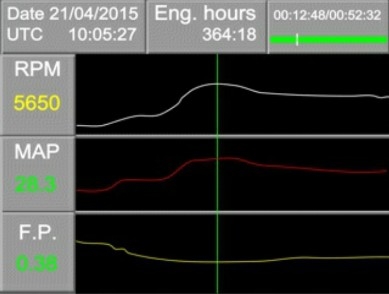

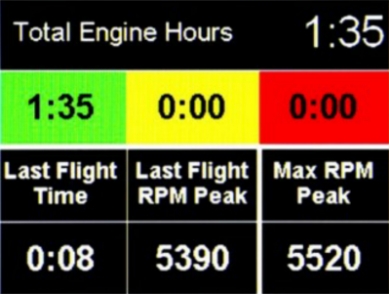

Vigilus is structured to have five different screens and through the functions menu is possible to visualize a graphic datalogger, as shown.
Technical specifications:
  • Dimensions: 86x86x22 mm (Vigilus)
    135x79x20 mm (Remote Module)
  • Weight: 185 g
  • Operating temperature range: -20~+70 °C
  • Supply voltage: 12~30 Vdc
  • Supply current: 200 mA
  • 3.5” TFT color LCD screen.
  • Display brightness: 1000nits, adjustable.
  • Standard 3 1/8” (80mm) panel mount
  • Audio LineOut for intercom
  • 2 CAN Bus communication interfaces
  • GPS input: standard RS-232, data format: NMEA-0183, sentences required: $GPRMC and $GPRMB
  • 1 USB port
  • Internal storage for 200 hours of datalogger

Vigilus EP Installation Manual

Vigilus Operating Manual
