FLYBOX OMNIA MAP 57mm

Artikkelnr.: DBMIOMNMAP

Omnia MAP is a compact and reliable instrument that integrates a precise and calibrated sensor. The instrument is fully customizable to fit almost any engine. With a maximum measurable of 80 inHg, can also be used for the most powerful turbocharged engine

NOK4 816,58 inkl. mva.
Ønskeliste

Produktinfo

Omnia MAP is a compact and reliable instrument that integrates a precise and calibrated sensor. The instrument is fully customizable to fit almost any engine. With a maximum measurable of 80 inHg, can also be used for the most powerful turbocharged engines.
All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.
Omnia MAP can be interfaced with the Rotax engines "i" series through the CAN bus.
Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.
Main features
Included gauges:

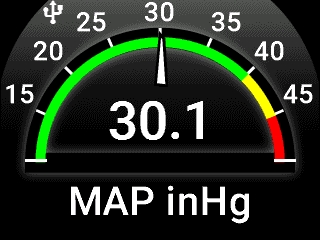

  • Manifold pressure
Interfaces:
  • Knob with pushbutton
  • 2 CAN bus
  • Light Sensor input
  • USB 2.0 port
  • Embedded fuel resistant MAP sensor
  • Can be connected in cluster with other Omnia instruments
Manufacturing:
  • Rugged case milled from solid aluminium
  • Powder-painted
  • 100% manufactured and tested with automatic processes
Functions:
  • Manual or Automatic Backlight dimmer
  • Easy software updating through the USB port
Technical specifications:
● 2.4" color graphic LCD 320x240 pixels with 1000 nits backlight.

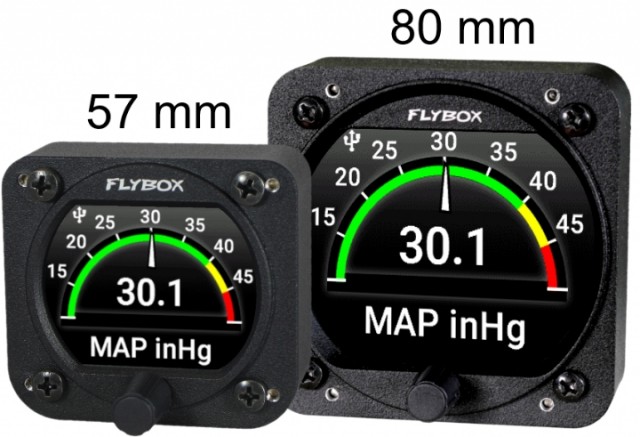

● Standard mounting 2-1/4” 57mm and 3-1/8” 80mm.
● Powder painted aluminium case.
● Dimensions: 68x62x35mm (57), 85x85x40mm (80).
● Weight: 140g. (57), 230g. (80)
● MAP sensor range: 0-60 inHg
● Supply voltage: 10 ~ 30 V=.
● Supply current: 60mA (57), 135mA (80).
● Open-collector alarm output (max 300mA, active low). This output can also be used to send a tone in the intercom, using the Flybox optional device code 105899.
● Operating temperature range: -20 ~ +70°C.
● Humidity: 90% max (without condensation).
● Communication through 2 CAN bus.
● USB Port: for USB 2.0
What is included:
  • Omnia MAP instrument
  • Printed user manual (ENG version)
  • All required Molex connectors
  • Pins
  • M4x10mm screws
  • 120 ohm resistor
  • Packing list
Optional accessories:
  • Cod. 105800 Wired Ambient Light sensor
  • Cod. 105810 CAN termination 120 ohm
  • Cod. 105820 CAN cable 25 cm
  • Cod. 105830 CAN cable 50 cm
  • Cod. 105840 CAN cable 100
  • Cod. 105898 Alarm Buzzer for Omnia series
  • Cod. 604010 USB extender Cable 0.5 Mt
