Omnia57 ROTOR

Artikkelnr.: 105756

Omnia ROTOR is a multifunction rotor tachometer with added functions like chronometer and automatic flight timer. The instrument is fully customizable to fit almost any rotor pulse number.

NOK4 032,89 inkl. mva.
  • Produktinfo
  • Overview
  • Specs
  • Components
Omnia ROTOR is a multifunction rotor tachometer with added functions like chronometer and automatic flight timer. The instrument is fully customizable to fit almost any rotor pulse number. The instrument is suitable for installation on both gyroplanes and helicopters.
All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.
Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.
Main ROTOR RPM screen with indication in absolute value
Main ROTOR RPM screen with indication in percentage value
Chronometer and last flight timer indications
Note:
It requires the Rev sensor Cod. 105896 or other 0-12V Rev sensor.
Main features
Included gauges:
  • 1 Tachometer
  • 1 Chronometer
  • Interfaces:
  • Knob with pushbutton
  • 2 CAN bus
  • Light Sensor input
  • USB 2.0 port
  • 1 Rotor Tachometer input
  • Can be connected in cluster with other Omnia instruments
Manufacturing:
  • Rugged case milled from solid aluminium
  • Powder-painted
  • 100% manufactured and tested with automatic processes
Functions:
  • Visual Alarm on screen
  • Transistor Alarm output
  • Manual or Automatic Backlight dimmer
  • Easy software updating through the USB port
Technical specifications:
  • 2.4" color graphic LCD 320x240 pixels with 1000 nits backlight

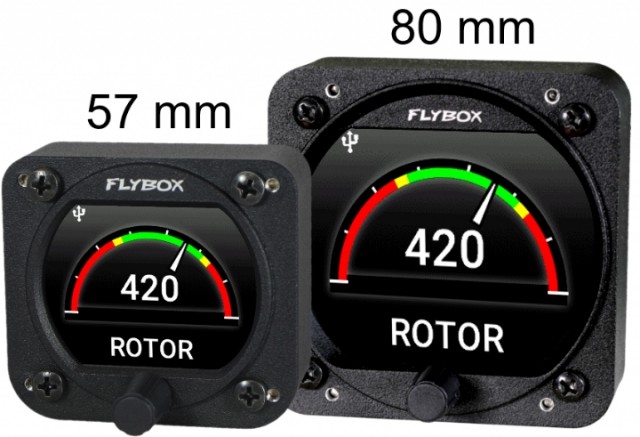

  • Standard mounting 2-1/4” 57mm and 3-1/8” 80mm.
  • Powder painted aluminium case.
  • Dimensions: 68x62x35mm (57), 85x85x40mm (80).
  • Weight: 140g. (57), 230g. (80)
  • 1 Engine RPM L input: (2-20Vpp min 300uS)
  • 1 Engine RPM H input: (5-100Vpp min 300uS)
  • 1 Rotor RPM input: (2-20Vpp min 100uS)
  • Supply voltage: 10 ~ 30 V=.
  • Supply current: 60mA (57), 135mA (80).
  • Open-collector alarm output (max 300mA, active low). This output can also be used to send a tone in the intercom, using the Flybox optional device code 105899.
  • Operating temperature range: -20 ~ +70°C.
  • Humidity: 90% max (without condensation).
  • Communication through 2 CAN bus.
  • USB port: for USB 2.0
What is included:
  • Omnia Rotor instrument
  • Printed user manual (ENG version)
  • All required Molex connectors
  • Pins
  • M4x10mm screws
  • 120 ohm resistor
  • Packing list
Optional accessories:
  • Cod. 105896 Flybox inductive sensor
  • Cod. 105800 Wired Ambient Light sensor
  • Cod. 105810 CAN termination 120 ohm
  • Cod. 105820 CAN cable 25 cm
  • Cod. 105830 CAN cable 50 cm
  • Cod. 105840 CAN cable 100 cm
  • Cod. 105899 Audio Tone adapter
  • Cod. 105898 Alarm Buzzer for Omnia series
  • Cod. 604010 USB extender Cable 0.5 Mt
  • Cod. 603000 Professional crimping tool
