Omnia57 RPM-MAP

Artikkelnr.: 105752

Omnia RPM-MAP is a multifunction engine tachometer with added functions like 4 Hobbs meters, chronometer, automatic flight timer, last flight RPM peak, max RPM peak ever and a MAP indicator.

NOK4 698,75 inkl. mva.
  • Produktinfo
  • Overview
  • Specs
  • Components
Omnia RPM-MAP is a multifunction engine tachometer with added functions like 4 Hobbs meters, chronometer, automatic flight timer, last flight RPM peak, max RPM peak ever and a MAP indicator. The instrument is fully customizable to fit almost any engine.
All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.
Omnia RPM-MAP can be interfaced with the Rotax engines i series through the CAN bus
Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.

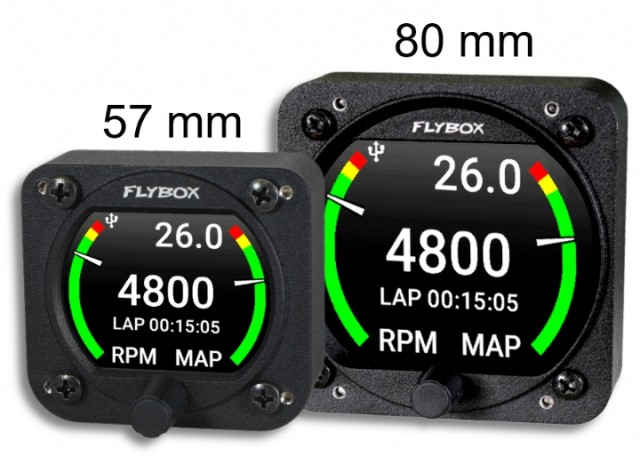

Main RPM and MAP screen with chronometer
Chronometer and last flight timer indications
The four Hobbs meters are: total engine hours, total time in green arc, total time in yellow arc, total time in red arc. A flight timer starts automatically at the take off. An RPM peak for the last flight and one for all the engine life are shown here.
Note:
MAP sensor is embedded.
Your engine may require the use of the optional rev sensor Cod. 105896 or other RPM sensor.
Main features
Included gauges:
  • 1 Tachometer
  • 1 Chronometer
  • 4 Hobbs meters
  • Last flight RPM peak memory
  • RPM memory peak ever
  • Manifold pressure

Interfaces:

  • Knob with pushbutton
  • 2 CAN bus
  • Light Sensor input
  • USB 2.0 port
  • 1 Tachometer input low level
  • 1 Tachometer input high level
  • Embedded fuel resistant MAP sensor
  • Can be connected in cluster with other Omnia instruments
Manufacturing:
  • Rugged case milled from solid aluminium
  • Powder-painted
  • 100% manufactured and tested with automatic processes
Functions:
  • Visual Alarm on screen
  • Transistor Alarm output
  • Manual or Automatic Backlight dimmer
  • Easy software updating through the USB port
Technical specifications:
  • 2.4" color graphic LCD 320x240 pixels with 1000 nits backlight
  • Standard mounting 2-1/4” 57mm and 3-1/8” 80mm.
  • Powder painted aluminium case.
  • Dimensions: 68x62x35mm (57), 85x85x40mm (80).
  • Weight: 140g. (57), 230g. (80)
  • Supply voltage: 10 ~ 30 V=.
  • Supply current: 60mA (57), 135mA (80).
  • Open-collector alarm output (max 300mA, active low). This output can also be used to send a tone in the intercom, using the Flybox optional device code 105899.
  • 2 inputs for RPM (high and low)
  • 1 RPM L input: (2-20Vpp min 300uS)
  • 1 RPM H input: (5-100Vpp min 300uS)
  • 1 MAP port with internal sensor: 0-60 inHg
  • Operating temperature range: -20 ~ +70°C.
  • Humidity: 90% max (without condensation).
  • Communication through 2 CAN bus.
  • USB port: for USB 2.0
Previous
Instrument
Next
Instrument
Price: 312,00 €
(Price exc.Vat)
Omnia57 RPM-MAP
Cod. 105752
BUY NOW
Price: 361,00 €
(Price exc.Vat)
Omnia80 RPM-MAP
Cod. 108052
BUY NOW
See included and optional accessories
in the Components tab at the bottom
of the page
Omnia57
Omnia80
Omnia RPM-MAP is a multifunction engine tachometer with added functions like 4 Hobbs meters, chronometer, automatic flight timer, last flight RPM peak, max RPM peak ever and a MAP indicator. The instrument is fully customizable to fit almost any engine.
All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.
Omnia RPM-MAP can be interfaced with the Rotax engines i series through the CAN bus
Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.
Main RPM and MAP screen with chronometer
Chronometer and last flight timer indications
The four Hobbs meters are: total engine hours, total time in green arc, total time in yellow arc, total time in red arc. A flight timer starts automatically at the take off. An RPM peak for the last flight and one for all the engine life are shown here.
Note:
MAP sensor is embedded.
Your engine may require the use of the optional rev sensor Cod. 105896 or other RPM sensor.
Previous
Instrument
Next
Instrument
  • Cod. 105896 Flybox inductive sensor
  • Cod. 105800 Wired Ambient Light sensor
  • Cod. 105810 CAN termination 120 ohm
  • Cod. 105820 CAN cable 25 cm
  • Cod. 105830 CAN cable 50 cm
  • Cod. 105840 CAN cable 100 cm
  • Cod. 105899 Audio Tone adapter
  • Cod. 105898 Alarm Buzzer for Omnia series
  • Cod. 604010 USB extender Cable 0.5 Mt
  • Cod. 603000 Professional crimping tool
