Omnia57 RPM-ROTOR

Artikkelnr.: 105772

Omnia RPM-ROTOR is a multifunction engine tachometer with added functions like 4 Hobbs meters, chronometer, automatic flight timer, last flight RPM peak, max RPM peak ever and a RPM Rotor indicator.

NOK4 714,45 inkl. mva.
Ønskeliste
  • Produktinfo
  • Overview
  • Specs
  • Components
Omnia RPM-ROTOR is a multifunction engine tachometer with added functions like 4 Hobbs meters, chronometer, automatic flight timer, last flight RPM peak, max RPM peak ever and a RPM Rotor indicator. The instrument is fully customizable to fit almost any engine. Both indications of engine speed and rotor speed can be represented in absolute value or in percentage value.
All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.
Omnia RPM-ROTOR can be interfaced with the Rotax engines i series through the CAN bus
Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.
Indications are in absolute values
Main features
Included gauges:
  • 1 Tachometer
  • 1 Chronometer
  • 4 Hobbs meters
  • Last flight RPM peak memory
  • RPM memory peak ever
  • 1 Rotor Tachometer

Interfaces:

  • Knob with pushbutton
  • 2 CAN bus
  • Light Sensor input
  • USB 2.0 port
  • 1 Tachometer input low level
  • 1 Tachometer input high level
  • 1 Rotor Tachometer input low level
  • Embedded fuel resistant MAP sensor
  • Can be connected in cluster with other Omnia instruments
Manufacturing:
  • Rugged case milled from solid aluminium
  • Powder-painted
  • 100% manufactured and tested with automatic processes
Functions:
  • Visual Alarm on screen
  • Transistor Alarm output
  • Manual or Automatic Backlight dimmer
  • Easy software updating through the USB port
Technical specifications:
  • 2.4" color graphic LCD 320x240 pixels with 1000 nits backlight.

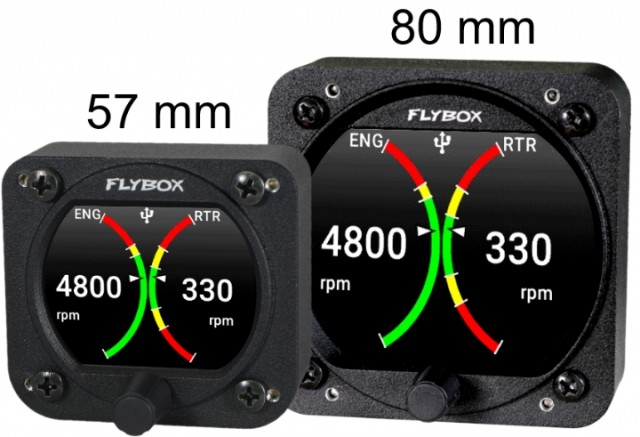

  • Standard mounting 2-1/4” 57mm and 3-1/8” 80mm.
  • Powder painted aluminium case.
  • Dimensions: 68x62x35mm (57), 85x85x40mm (80).
  • Weight: 140g. (57), 230g. (80)
  • 1 Engine RPM L input: (2-20Vpp min 300uS)
  • 1 Engine RPM H input: (5-100Vpp min 300uS)
  • 1 Rotor RPM input: (2-20Vpp min 100uS)
  • Supply voltage: 10 ~ 30 V=.
  • Supply current: 60mA (57), 135mA (80).
  • Open-collector alarm output (max 300mA, active low). This output can also be used to send a tone in the intercom, using the Flybox optional device code 105899.
  • Operating temperature range: -20 ~ +70°C.
  • Humidity: 90% max (without condensation).
  • Communication through 2 CAN bus.
  • USB port: for USB 2.0
  • Cod. 105896 Flybox inductive sensor
  • Cod. 105800 Wired Ambient Light sensor
  • Cod. 105810 CAN termination 120 ohm
  • Cod. 105820 CAN cable 25 cm
  • Cod. 105830 CAN cable 50 cm
  • Cod. 105840 CAN cable 100 cm
  • Cod. 105899 Audio Tone adapter
  • Cod. 105898 Alarm Buzzer for Omnia series
  • Cod. 604010 USB extender Cable 0.5 Mt
  • Cod. 603000 Professional crimping tool
