Omnia80 ALTI-VARIO

Artikkelnr.: 108016

Omnia ALTI-VARIO is a compact and reliable instrument that integrates a precise and calibrated sensor to measure the aircraft altitude up to 25.000 ft.

NOK5 429,91 inkl. mva.
Ønskeliste
  • Produktinfo
  • Overview
  • Specs
  • Components
Omnia ALTI-VARIO is a compact and reliable instrument that integrates a precise and calibrated sensor to measure the aircraft altitude up to 25.000 ft. A graphic variometer is shown in the main screen.
All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.
Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.
Main screen with Altimeter and VSI tape indications
The pressure reference is shown in both hPa and inHg
Main features
Included gauges:
  • Altimeter
  • Vertical speed indicator
Interfaces:
  • Knob with pushbutton
  • 2 CAN bus
  • Light Sensor input
  • USB 2.0 port
  • Static port
  • Can be connected in cluster with other Omnia instruments
Manufacturing:
  • Rugged case milled from solid aluminium
  • Powder-painted
  • 100% manufactured and tested with automatic processes
Functions:
  • Customizable color tape
  • Settable bug on the altitude tape
  • VSI tape indicator
  • Manual or Automatic Backlight dimmer
  • Easy software updating through the USB port
UTILITIES
FOLLOW US
-
-
-
NEWSLETTER
CONTACT
Technical specifications:
  • 2.4" color graphic LCD 320x240 pixels with 1000 nits backlight

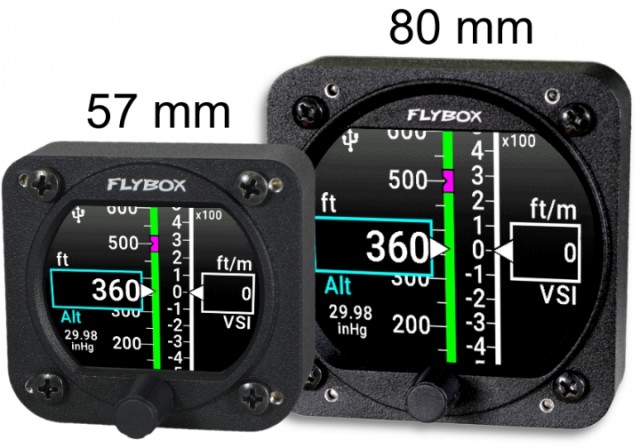

  • Standard mounting 2-1/4” 57mm and 3-1/8” 80mm.
  • Powder painted aluminium case.
  • Dimensions: 68x62x35mm (57), 85x85x40mm (80).
  • Weight: 140g. (57), 230g. (80)
  • Supply voltage: 10 ~ 30 V=.
  • Supply current: 60mA (57), 135mA (80)
  • Altitude range: -1000’/+25000’
  • Open-collector alarm output (max 300mA, active low). This output can also be used to send a tone in the intercom, using the Flybox optional device code 105899.
  • Operating temperature range: -20 ~ +70°C.
  • Humidity: 90% max (without condensation).
  • Communication through 2 CAN bus.
  • USB port: for USB 2.0
What is included:
  • Omnia Alti-Vario instrument
  • Printed user manual (ENG version)
  • All required Molex connectors
  • Pins
  • M4x10mm screws
  • 120 ohm resistor
  • Packing list
Optional accessories:
  • Cod. 105800 Wired Ambient Light sensor
  • Cod. 105810 CAN termination 120 ohm
  • Cod. 105820 CAN cable 25 cm
  • Cod. 105830 CAN cable 50 cm
  • Cod. 105840 CAN cable 100 cm
  • Cod. 105898 Alarm Buzzer for Omnia series
  • Cod. 604010 USB extender Cable 0.5 Mt
  • Cod. 603000 Professional crimping tool
