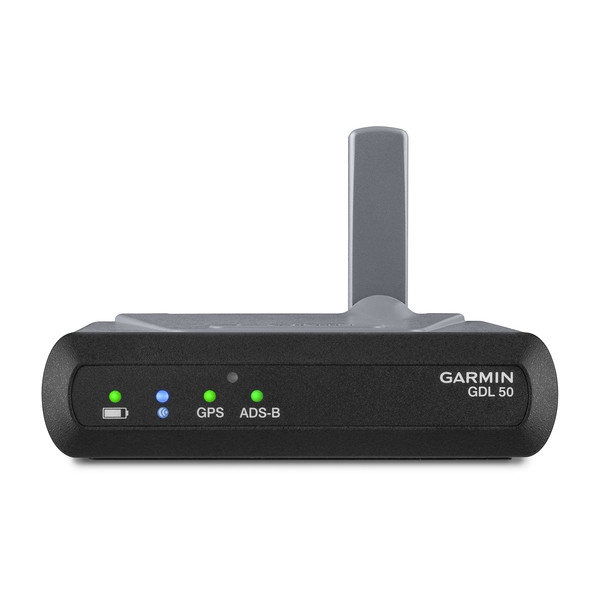

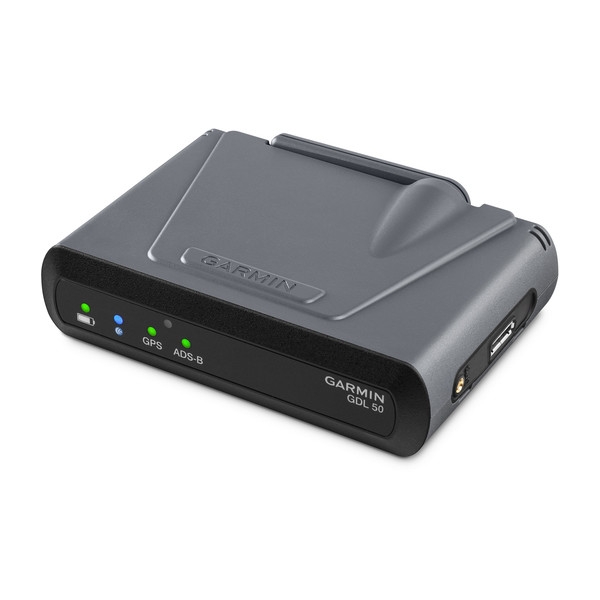

GARMIN GDL 50 PORTABLE ADS-B / GPS RECEIVER

Artikkelnr.: 010-01561-00

Wirelessly Link to Weather, Traffic, GPS and More

NOK12 684,00 inkl. mva.
  • Produktinfo
  • Features
  • Spesefications
  • In The Box

Note 1: GDL 50 ADS-B WILL work for traffic internationally on the second frequency, 1090ES. These receivers (all ADS-B receivers) will NOT receive FIS-B weather products outside the USA as that is a USA only system. They will not receive traffic on frequency 978 outside the USA but WILL work internationally on frequency 1090ES.



Wirelessly Link to Weather, Traffic, GPS and More

  • Receive subscription-free animated U.S. datalink weather¹ via ADS-B “In”
  • ADS-B “dual-link” traffic with TargetTrend™ and TerminalTraffic™ technology3
  • Wireless connectivity to Garmin Pilot™, FltPlan Go and ForeFlight apps as well as select Garmin portables.
  • Compact device with rechargeable battery; designed to sit on aircraft glareshield
  • Provides GPS position data, backup attitude and more

Providing an easy-to-use and completely portable aviation datalink, the compact GDL 50 ADS-B receiver lets you access the subscription-free ADS-B weather and traffic services available in the U.S. — all while providing GPS position, speed and altitude information as well as backup attitude reference. Better still, you can use our Connext® wireless connectivity to stream this information onto multiple Garmin aviation portables (including aera® 660, aera 796 or aera 795 series) as well as iPad® tablets and mobile devices with the Garmin Pilot™ app.

Track Aviation Weather
Featuring ADS-B “In” datalink technology, the GDL 50 receiver allows reception of subscription-free Flight Information Service-Broadcast (FIS-B) weather information. With this, your compatible devices² can display animated graphical weather plus METARs, TAFs, winds and temperatures aloft, PIREPs, NOTAMs and other features linked from ADS-B. And to help you maintain the most current weather picture, your GDL 50 receiver can queue the ADS-B weather data display while your display device is sleeping or turned off, so it automatically updates when you turn the screen back on.

Spot Potential Traffic Threats

To aid in situational awareness, GDL 50 can also receive ADS-B position reports directly from other aircraft in your vicinity. In the U.S., 2 frequencies (978 UAT and 1090 ES) are approved by the FAA for ADS-B broadcasts, so the GDL 50 series offers access to both frequencies. This allows you to see the most comprehensive view of all ADS-B “Out” equipped targets in your vicinity. Your compatible display³ will alert you by announcing traffic targets both audibly and visually. Spoken audio alerts announce “Traffic, Traffic” to get you looking right away.

View Enhanced Traffic Features

To further extend your display’s traffic monitoring capability (on compatible displays), the GDL 50 receiver also allows access to our TargetTrend relative motion tracking technology. This feature gives you a faster, more intuitive way to judge the direction and closure rate of intruding targets relative to your aircraft’s position. So, rather than a fixed “snapshot” of the traffic situation, TargetTrend provides a more dynamic “velocity-based” display that shows which aircraft trajectories are most likely to converge with your own. For example, if traffic is ahead of you and traveling along the same track but at a slower rate, the motion vector would point opposite of its indicated direction of flight to show you are overtaking the traffic. The result — you’re able to make faster, better target avoidance decisions.

For airport operations, TerminalTraffic technology (a part of the comprehensive Garmin suite of Terminal Safety Solutions) enables ADS-B-equipped surface targets to be displayed on your device’s SafeTaxi® diagram so you can see what’s happening with traffic on busy runways and taxiways. ADS-B-equipped aircraft in-flight are easily distinguished from ground vehicles and taxiing aircraft, which are displayed using distinct colors and symbols. Thus, TerminalTraffic provides a clear, real-time overview of on-surface activity in the airport environment.

Built-in GPS and Attitude Sensors for SVX™ Display

In addition to its weather and traffic capabilities, your GDL 50 feature set includes a built-in WAAS GPS receiver. This enables GDL 50 to deliver highly accurate aircraft position, speed and altitude information to your compatible mobile device app. Also, built-in attitude sensors enable select Garmin aviation portables and apps with our SVX synthetic vision technology to serve as a backup attitude reference during your flights. With virtual terrain, obstacles, runways, horizon cues, HSI, GPS speed, altitude and more, this brings a whole new perspective to your portable navigation.

Battery Power for Hours

GDL 50 is a true go-anywhere device. A rechargeable built-in lithium-ion battery allows GDL 50 to operate for up to 8 hours on a single charge. And for operation connected to power, you can plug it into your aircraft’s 12 V power outlet with the included adapter cable, or use the microUSB port positioned on the side of the receiver.

Link up with the Benefits of ADS-B

For pilots who want subscription-free U.S. datalink weather and traffic, the compact GDL 50 portable ADS-B receiver offers a versatile solution with an array of additional capabilities. And by going with Garmin, your receiver will be backed by a comprehensive 1-year warranty — and by the industry’s No. 1-ranked product support team.

GDL 50 is a noncertified receive-only product. It does not provide ADS-B “Out” capability to satisfy FAA mandate requirements.
¹Not all ADS-B weather products may be available across all devices. Check your Pilot’s Guide for specifics about which products are available on your device.
2Audible traffic alerting, TargetTrend and TerminalTraffic require compatible displays. Check your Pilot’s Guide for specific capabilities available on your display.
3The attitude information provided by GDL 50 is not intended to be a source of attitude information for flight in instrument meteorological conditions

Apple and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

  • Compatible with G3X Touch™, aera® 660 and aera 795/796 aviation portables, the Garmin Pilot™ app on Apple® or Android™ mobile devices, and FltPlan Go.
  • GDL 50 can simultaneously support up to: 2 wireless display devices and 2 wired display devices.
  • Rechargeable lithium-ion battery allows the GDL 50 to operate for up to 8 hours on a single charge.

Physical

  • Unit dimensions, WxHxD: 4.9" x 1.3" x 3.4" (12.44 x 3.30 x 8.64 cm)
  • Weight: 0.75 lbs (0.34 kg)
  • Anti-slip mat (bottom of unit only)

Performance

  • Operating temperature: -20°C to +60°C (-4°F to 140°F)
  • Operating altitude: To 55,000 ft
  • Nominal operating velocity range: 0 – 800 kts (411 m/s)
  • Power input: 10 to 32 VDC, 3.5 W max.

  • Battery type: Lithium-ion rechargeable (built-in)
  • Charge temperature: Unit may not charge at extreme temperatures below 0° C (32° F) or above 32° C (90° F)
  • Typical battery operating time: 5 hours

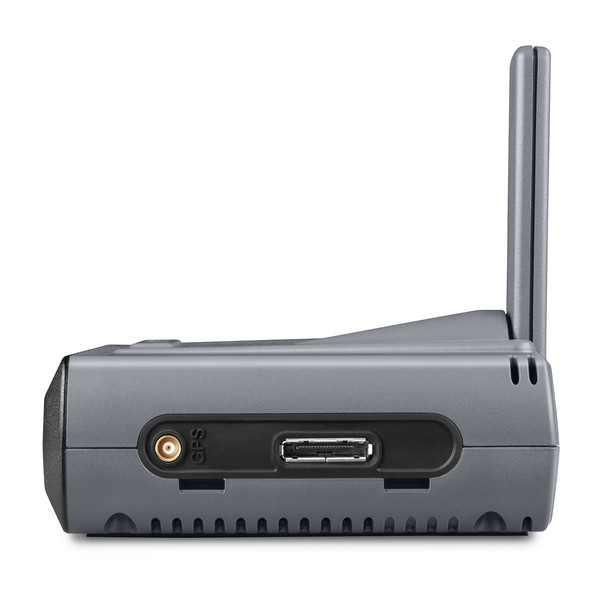

Connections

  • 18-pin power and data connector
  • microUSB
  • ADS-B MCX antenna port
  • GPS MCX antenna port
  • Wireless Connext™ (Bluetooth®)
  • GDL 50 portable receiver
  • Suction cup for cable placement
  • Mounting bracket
  • Trial subscription to Garmin Pilot™ app
  • Vehicle power cable
  • Documentation
