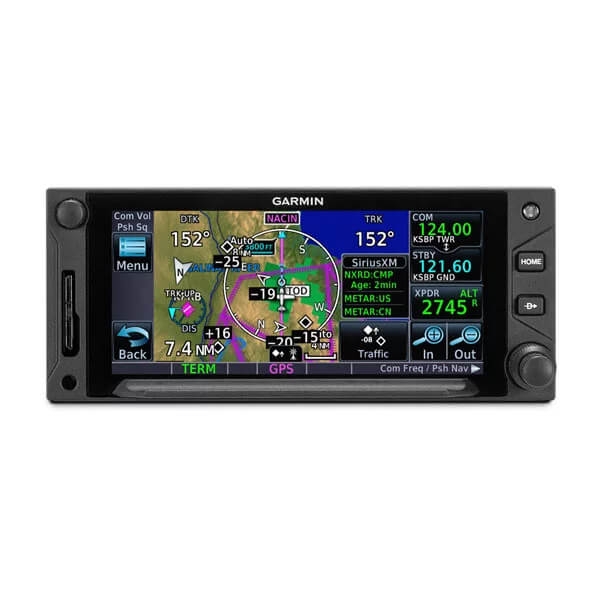

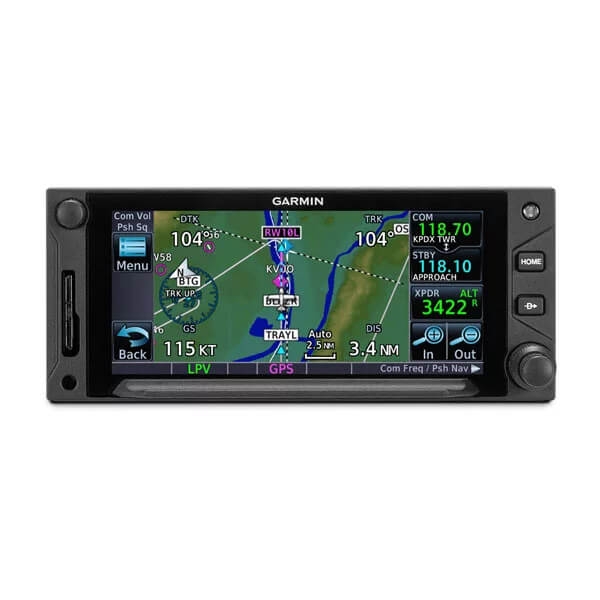

GARMIN GTN 650XI GPS / NAV / COMM SYSTEM FOR CERTIFIED AIRCRAFT

Artikkelnr.: 010-01999-31

GTN 650Xi Gray receiver w/rack, backplate, conn kit, config module and product information kit*

NOK206 804,00 inkl. mva.
Ønskeliste

Produktinfo

Garmin is changing the course of aviation yet again! Introducing the GTN 650XI. With more pixels, more processing power, more speed and performance, the GTN 650Xi system brings exciting new growth capabilities to the industry’s premier GPS/Nav/Comm/MFD platform.

Brighter, Faster, Sharper, Better

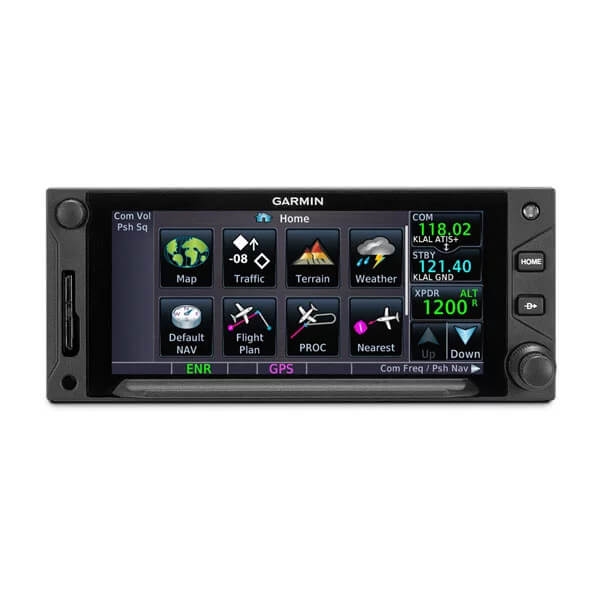

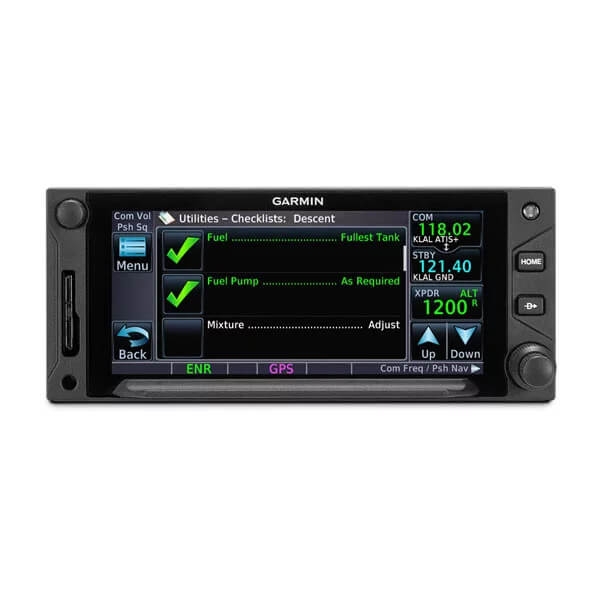

    Do-It-All Touchscreen
  • Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more.
    Lightning-Fast Response
  • Powerful dual-core processors boost the GTN Xi series graphical display capabilities — with faster zooming, panning and map rendering on the display.
    High-Resolution Display
  • With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics..

Work Saving Ways to Tune and Display

    Multi-function Display

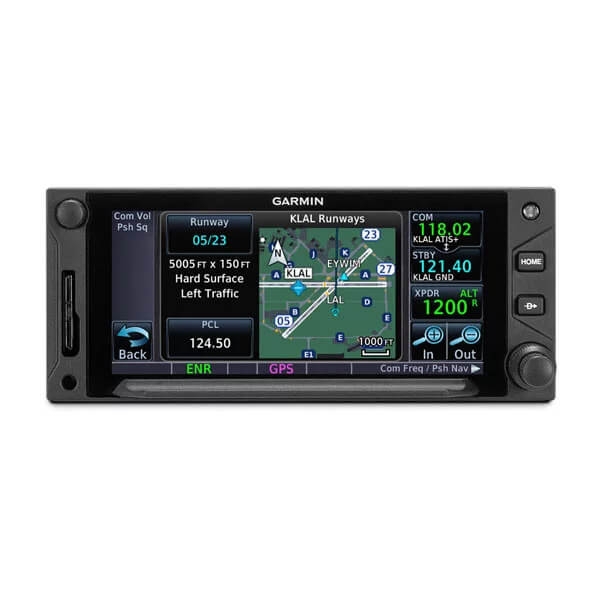

  • Supporting multiple inputs, the 4.9” display can put moving maps, terrain, traffic, weather, airport diagrams and more at your fingertips.
    Easy Data Entry
  • Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more.
    Tell It, Tune It
  • Available Telligence™ voice control technology helps reduce pilot workload by responding to hundreds of spoken commands with the press of a button on the yoke.
    Pinch, Swipe Gestures
  • A quick finger swipe lets you pan across the map display. Or use a smartphone-like pinch-to-zoom motion to scale up or down on any map, traffic or terrain page.

Specifications

  • TSO applicability: C34e; 2C34f; C36e Class A; 2C36f Class A; C40c; 2C40c; C74d Class A; C112e; C128a; 2C128; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C169a Class C, E, 3, 4, 5, 6; 2C169a Class C, E, H2, 3, 4, 5, 6; C194; C195b Class B1, B3, B5, B7; C209
  • Display size: 4.9" (125 mm) diagonal
  • Display resolution: 834 pixels (W) x 370 pixels (H)
  • Unit bezel height: 2.65" (67 mm)
  • Unit bezel width: 6.25" (159 mm)
  • Unit depth with connectors: 11.25" (286 mm) (measured from face of aircraft panel to rear of connector backshells)
  • Unit weight: 5.5 lbs (2.48 kg)
  • Input voltage range: 11 VDC - 33 VDC
  • Operating temperature range: -20° C to 55° C (-4° F to 131° F)
  • Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
  • LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
  • Maximum velocity: 1,166 knots
  • Position update Interval: 0.2 sec (5 Hz)

Compatible Interfaces

InterfaceManufacturerModelNotes/Info
Air Data Computer B & D 90004-003
  Honeywell (Bendix/King) KDC 281
    KDC 481
  Insight TAS 1000
Altitude Serializer/Encoder Garmin GTX 327
  ACK Technologies A-30 (Mod 8 and above)
  ARNAV FC-10
    FT-10
  Electronics International FP-5L
  Icarus Instruments 3000
  JP Instruments EDM-700
  Sandia SAE 5-35
  Shadin 833811-00 (AIS-380)
    8800T
    9000T
    9200T
    F/ADC-200
    F/ADC-2000
    91204XT(38)D (Miniflo-L)
    91053XP (Digiflo-L)
    91053XT-D (Digiflo-L)
    912802-( ) (Digidata)
  Trans-Cal Industries IA-RS232-X
    SSD120
Audio Panel Garmin SL10
    SL10MS
    SL10M
    SL10S
    SL15
    SL15M
    GMA 340
    GMA 347
    GMA 35(c)
    GMA 350(c)/350H(c)
  Honeywell (Bendix/King) KMA 24
    KMA 24H-70/71
    KMA 26
    KMA 28
  PS Engineering PMA 6000
    PMA 7000 Series
    PMA 8000 Series
Autopilot Garmin GFC 500
    GFC 600
  Bendix M4C
    M4D
  Century I/II/III/IV
    21/31/41
    2000
    Trident
    AK 1081
  Cessna 300B/400B/800B
    300 IFCS/400 IFCS/800 IFCS/1000 IFCS
  Collins APS 65 ( )
  Honeywell (Bendix/King) KAP 100/140/150
    KFC 150/200/250/300
    KFC 225/275/325
  Sperry SPZ 200A/500
  S-TEC System 20/30/40/50/55/60-1/60-2/60 PSS/65
    System 55X
    ST-901
Datalink Weather Display and Control Garmin GDL 69/69A GDL 69A also provides SiriusXM radio entertainment.
    GSR 56 GSR 56 also provides text/voice communication
DME Control Collins DME 40
    DME 42
  Honeywell (Bendix/King) KN62/62A
    KN63
    KN64
    KDI 572/574
    KDM 706
  Narco DME 890
    IDME 891
EFIS Garmin G500/G600
    TXi Series
    G5
    G3X Touch
  Avidyne EXP5000
  Honeywell (Bendix/King) EFS 40/50 (SG 465)
EHSI Sandel SN 3308
    SN3500/4500
FIS-B Weather Display and Control Garmin GDL 88
Fuel/Air Data Garmin GTX 327
  ARNAV FC-10
    FT-10
  Electronics International FP-5L
  JP Instruments EDM-700
  Shadin F/ADC-200
    F/ADC-2000
    91204XT(38)D (Miniflo-L)
    91053XP (Digiflo-L)
    91053XT-D (Digiflo-L)
    912802-( ) (Digidata)
IRU/AHRS Collins AHS-85E
Lightning Detection Display and Control L-3 Communications WX-500
Multifunction Display Garmin GMX 200
    MX20
  Avidyne EX500
    EX5000
NAV Indicator Garmin GI 102/A
    GI 106/A
  Century NSD 360A
    NSD 1000
  Collins 331A-6P
    331A-9G
    PN101 (331A-3F/3G)
    IND-351D
  Honeywell (Bendix/King) KI 202A/203/204/206
    KI 208/A
    KI 209/A
    KI 525A
    KPI 552/B
    KPI 553/A/B
  Mid Continent MD222-402
    MD222-406
    MD200-302/303/306/307
  Sperry RD 444
    RD 550A
    RD 650
  S-TEC ST 180
Synchro Heading Source Bendix/King KI-525A
TAS/TCAS/TIS Traffic Display and Control Garmin GTS 800/820/850
    GTX 330/33/330D/33D
  Avidyne (Ryan) TAS 6XX (TCAD 9900BX)
  Honeywell (Bendix/King) KMH 880 (KMH 820)
    KMH 980 (KMH 920)
    KTA 870 (KTA 810)
    KTA 970 (KTA 910)
  L-3 Communications SKY497 (Skywatch)
    SKY899 (Skywatch HP)
Terrain Avoidance and Warning System Honeywell (Bendix/King) KGP 560
    KMH 880 (KMH 820)
    KMH 980 (KMH 920)
Transponder Display and Control Garmin GTX 32
    GTX 327
    GTX 328
    GTX 33/33D
    GTX 330/330D
    GTX 325/335(R)/345(R)
Weather Radar Display and Control Garmin GWX 68
    GWX 70
    GWX 75
  Bendix/King RDS 81 (RS 811A)
    RDS 82 (RS 181A)
    RDR 2000 (ART 2000)
    RDR 2100 (ART 2100)
