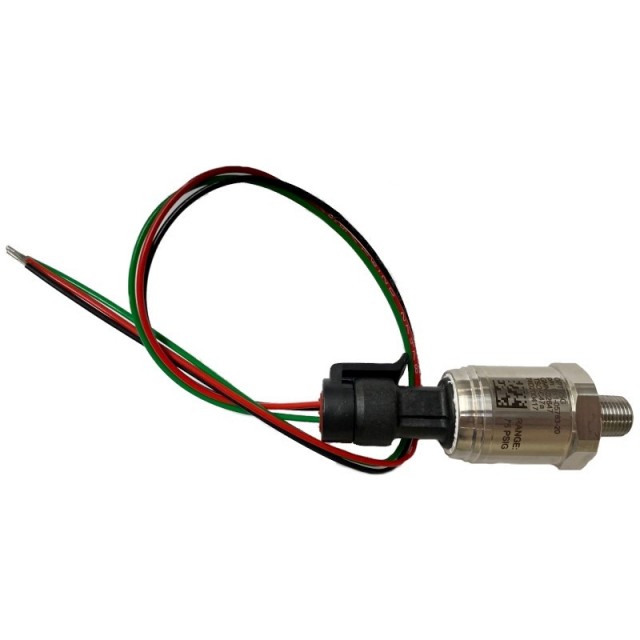

Function: Fuel Pressure Transducer
Engine Type: Injected
Operating Temperature Range: -55 °C to +125 °C (-67 °F to +257 °F)
Gage Range: 0 to 75 psig
Output Voltage Range: 0.5 to 4.5 VDC
Material: Brass
Weight: 31 g (sensor only) | 51 g (with connector)
NOTES
All class II fluids compatible
Proof pressure 150 psia
Power consumption <25 mW
