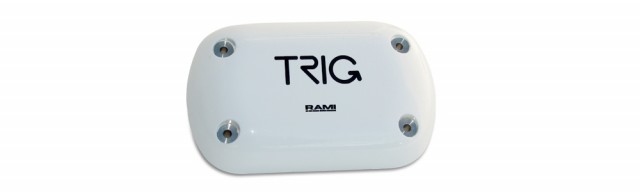

TA70 GPS antenna

Artikkelnr.: 01740-00

Trig’s GPS antenna has been produced in conjunction with partners RAMI to ensure optimum performance with all Trig GPS position source products.

NOK4 835,00 inkl. mva.
  • Produktinfo
  • Features
  • Versions
  • Spesifications
  • FAQ

TA70 GPS ANTENNA

Trig’s GPS antenna has been produced in conjunction with partners RAMI to ensure optimum performance with all Trig GPS position source products. The TA70 provides you with a fully certified TSO-C190 antenna – compatible and proven with Trig transponders and supported by our free ADS-B STC program.

Trig’s GPS antenna is a future proof product, it is fully compliant with the latest FAA 2020 ADS-B requirements – this makes it the logical choice in the majority of installations.

  • TSO C-190 certified antenna
  • Optimised for use with Trig GPS units
  • Compliant for 2020 ADS-B Out
  • Lightweight and simple to install
  • Superior gasket for a weather tight seal
  • Ideal as a retro-fit antenna option

COMPATIBLE TRIG PRODUCTS

The TA70 can be paired with either our TN70 or TN72 GPS receivers. Each antenna comes with a simple installation guide and fixing kit.

PRODUCT DESIGN

The antenna is light, easy to install and comes with a superior gasket feature  – this provides coverage of existing antenna holes, giving a secure and weather tight seal.

ADS-B COMPLIANCE

The TA70 antenna is included as standard in a TN70 GPS kit. This simplifies compliance as both the GPS and antenna meet the FAA 2020 mandate for ADS-B. For certified aircraft owners in North America, Trig offers a free FAA STC for the TA70 – this makes it straight forward to use in numerous popular airplane types.

Details of our STC provision and our aircraft AML list can be found at on our STC support page.

Product / Model Type Suitable for 2020 ADS-B rule airspace (US) or similar mandated ADS-B airspace Supply voltage (DC) Sales Part Number
TA70 WAAS GPS antenna – ideal retro-fit /with  rubber gasket Yes – certified to TSO-C190 4.5-14.5 VDC 01740-00
Specification TA70 Antenna
Type GPS antenna – SBAS supports EGNOS, GAGAN, MSAS and WAAS
Certification TS0-C190
Compliance DO-301, DO-160G
Supply voltage (DC) 4.5-14.5 VDC
Typical consumption (at 14v) 40mA Typ / 60mA max
Nominal Transmitter Power N/A
Operating temperature -55 to +70
Cooling requirement N/A
Weight 0.31 lbs
Dimensions (inches) 1.59” x 2.87” x 4.71”

WHAT'S IN THE BOX

  • All Trig products come with a two year warranty, starting from the day of installation
  • Installation instructions
  • Mounting template

FREQUENTLY ASKED QUESTIONS

Does the TA70 come with all Trig GPS receivers?
The TA70 antenna is included as standard in a TN70 GPS kit. This simplifies compliance as both the GPS and antenna meet the FAA 2020 mandate for ADS-B.
However, the TA70 is not included when purchasing a TN72. This is because uncertified pilots do not need a certified antenna.

What type of connector does the TA70 have?
The TA70 has a screw on TNC connector.
