TT21/TN72 Conspicuity bundle with 1 m TA50 antenna (complete system)

Artikkelnr.: 02375-00

TT21/TN72 Conspicuity Bundle – ideal for flight below 15,000 feet where a Class 2 transponder is permissible for Mode S and ADS-B Out.

NOK44 333,00 inkl. mva.
Ønskeliste
  • Produktinfo
  • Features
  • Versions
  • Spesefications
  • FAQ

If you are looking for a complete Mode S and ADS-B Out system, then you need one of our TN72 Bundles.

There are two different TN72 ADS-B Bundles available – choose the one that suits your requirements.

TT21/TN72 Conspicuity Bundle – ideal for flight below 15,000 feet where a Class 2 transponder is permissible for Mode S and ADS-B Out. The TN72 and TT21 in combination can be configured to either support TABS (SIL 1) or X configuration (SIL3) in the controller.

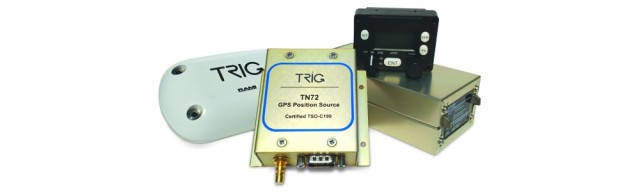

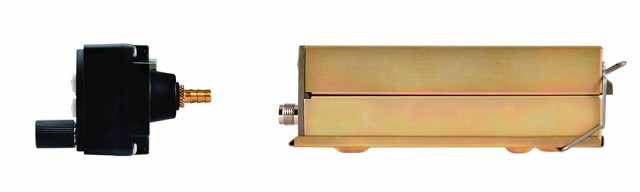

  • 1 x TT21 – Mode-S, 1090ES, certified compact transponder (Class 2)

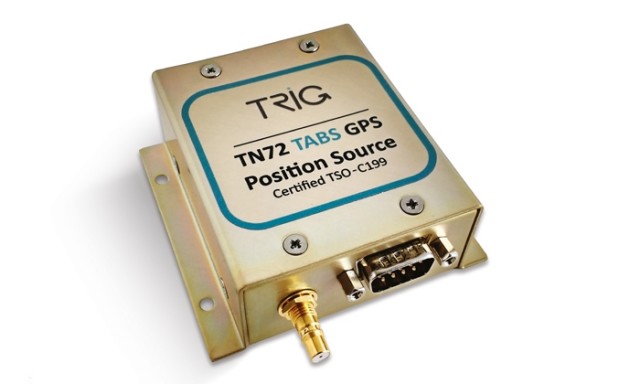

  • 1 x TN72 – certified GPS position source
  • 1 x TA50 – compact antenna with 1m lead and QMA connector (plugs into TN72)

TT22/TN72 ADS-B Bundle – select this if you operate a light-sport, experimental or home built aircraft in North America and you wish to be ADS-B Out equipped to fly in 2020 rule ADS-B airspace. This is a FAR 91.227 compliant solution for these particular aircraft types. The FAA require you to have a Class 1 transponder (the TT22).

This configuration also best suits high performance aircraft and those operating above 15,000 feet.

This kit includes:

  • 1 x TT22 – Mode-S, 1090ES, certified compact transponder (Class 1 required)
  • 1 x TN72 – FAR 91.227 compliant certified GPS position source

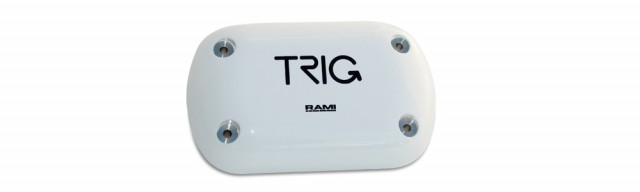

  • 1 x TA70 – certified WAAS GPS Antenna

It is possible to purchase items separately – please contact your nearest Approved Trig Dealer to make your aircraft ADS-B Out visible and improve your flight safety.

COMPACT AND LIGHTWEIGHT

ADS-B bundle installation options are versatile and practical. Each of the products within the bundle are lightweight and compact. The transponder hardware back box, and TN72 GPS can be installed away from your panel saving space and easing installation. The TC20 transponder control head includes a built in altitude encoder and can be installed in a 2 1/4″  round mount or in a space saving compact mount.

ALREADY FLYING WITH TRIG?

If you are already a Trig pilot and flying with a TT21 or TT22 transponder, then adding a TN72 GPS position source and GPS Antenna to your installation will provide ADS-B Out. This makes sense, as you already have half the solution.

ALTERNATIVE PRODUCTS

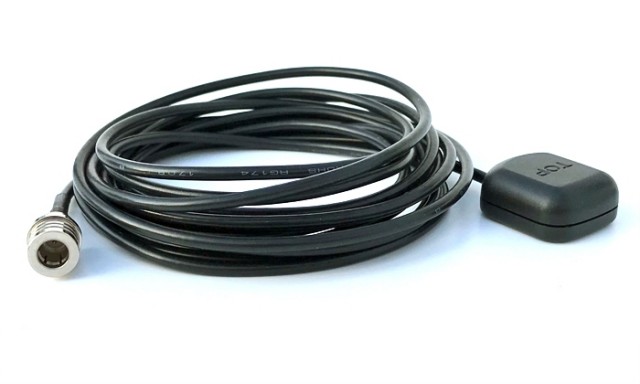

For installations where space is tight, the highly compact puck GPS antenna, the TA50 is ideal. This is an uncertified antenna, it is lightweight and very discreet, the cable is available in 100cm or 300cm lengths. Every product can be purchased individually, but bundles make a one box solution attractive.

WARRANTY AND SUPPORT

All Trig products ship with a two year warranty, this starts from the date of installation not from the date of purchase.  All software updates are free from Trig Service Centres (excludes shipping costs).

Product Included Certification Availability Sales Part Number
TT21/TN72 Conspicuity Bundle









T22/TN72      ADS-B Bundle

TT21 – Mode S Transponder        TN72 – GPS Position Source TA50 – Compact  GPS Antenna



TT22 – Mode S Transponder
TN72 – GPS Position Source
TA70 – WAAS GPS Antenna

 ETSO-C199 (TABS)











FAR91.227 complaint

 Ideal for voluntary equipage of ADS-B Out. The TA50 compact antenna is mounted on the cockpit coaming (a suitable view of the horizon is required). Owners of high wing aircraft may need to consider the TA70 antenna, please consult your dealer. (Configuration TABS or SIL3)





The bundle is available internationally but is ideal for U.S. Pilots who wish to meet FAR91.227 in North America.

 02375-00













02016-00



Specification  TT22 Transponder TN72 GPS Position Source  TA70 WAAS GPS Antenna
Type  Transponder Class 1 Mode S level 2els
ADS-B Class B1S		 TABS GNSS WAAS GPS antenna
Certification  ETSO C88A, C112C, C166A
TSO C88b, C112c, C166b, approved for IFR and VFR flight		 TSO-C199 Class B TS0-C190
Compliance  ED-73C, DO-160F, DO-178B Level B, DO-254
Level C, DO-260B, DO-181D		 TSO-C199 Class B, DO-160G DO-301, DO-160G
Supply Voltage (DC) 9-33 V 11 – 33 V  4.5-14.5 VDC
Typical Consumption at 14v idle: 0.15A active: 0.34 A at 14V – 0.1A  40mA Typ / 60mA max
Nominal Transmitter Power  250 W at connector N/A N/A
Operating Temperature  for the transponder -40°C to +70°C
for the controller -25°C to +70°C		 -40°C to + 70°C Operating temperature-40o – +105o
Cooling Requirement  no fan required  no fan required N/A
Connector
 N/A GPS (power, ground and GPS data) – 9 way D type
Antenna – 5V phantom power – QMA male		 The TA70 has a screw TNC connector.
Weight  for transponder: 440g / 0.8 lbs
for control head: 90g / 0.11 lbs		 110 grams / 3.8 ounces 0.31 lbs
Dimensions controller: H 1.8 x W 2.4 x L 2.1 inches
transponder in tray: H 1.8 x W 2.6 x L 6.2 inches		 H 1.2” x L 3.6” x W 2.5” (W with base flange 3.2”) 1.59” x 2.87” x 4.71”






WHAT'S IN THE BOX

  • EASA Form 1
  • Two year warranty (starts from date of installation)
  • TT22 Mode-S transponder
  • TT22 install kit, tray and manuals
  • TN72 GPS Position Source
  • TN72 install kit and manuals
  • TA70 WAAS GPS Antenna
  • TA70 mounting template

FREQUENTLY ASKED QUESTIONS

Does the bundle come with all relevant wiring?
To make your installation easier Trig wiring harnesses are available, to purchase as an extra accessory. Trig transponder wiring harnesses are available in 100cm or 300cm lengths and come with or without a connector to the TN72. Due to the variety of options available we advise you to select the most suitable wiring harness from our wiring harness product page (found in the left hand 'Product' navigation menu).

I am flying outside the US and would like to purchase the bundle. How can I do this?
In most cases you should consider the TT21/TN72 Conspicuity Bundle. The T22/TN72 ADS-B Bundle is popular in the US. In the US to be ADS-B complaint you must use a TT22 (Class 1 transponder). Outside of America you can you use the TT21 (Class 2 transponder). Check your local / appropriate ADS-B regulations to verify if a Class 1 transponder or Class 2 transponder is required?

Does Trig offer a highly compact GPS antenna?
In installations where space is at a premium, for example in gliders or ultralights, we offer a highly compact puck GPS antenna called the TA50. This is an uncertified, lightweight and discreet solution. The antenna is available in 100cm and 300cm cable lengths.
If you would prefer this option then ask your Dealer to order the TT22 transponder, TN72 GPS position source and TA50 antenna individually.
