TA10 - VHF Com antenna - straight

Artikkelnr.: 02451-00

The TA10 is a certified VHF Com antenna, designed to provide the best performance from Trig VHF radios.

NOK3 379,00 inkl. mva.
Ønskeliste
  • Produktinfo
  • Features
  • Versions
  • Spesefications
  • FAQ

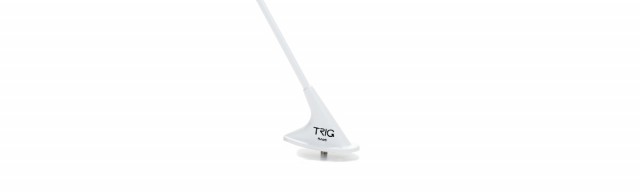

The TA10 is a certified VHF Com antenna, designed to provide the best performance from Trig VHF radios. The TA10 is a ‘straight’ model and typically is located on the upper fuselage of the aircraft surface. With excellent electrical characteristics, the antenna has an efficient  aerodynamic design that includes a solid four bolt mounting base. Ideal for use in a wide range of GA types, including high performance aircraft up to 350mph and 50,000 feet. Make your Trig radio installation complete by adding a TA10.

  • Advanced aerodynamic design – proven with Trig VHF radios
  • Suitable for most GA types, including high performance aircraft (up to 350 mph / 50,000 feet)
  • Certified to FAA TSO C37d and C38d
  • Solid four bolt mounting base
  • Complete with installation kit

This product can be ordered now – please be aware that the delivery lead time will be confirmed at the time of ordering.

The TA10 Antenna is suitable for use world-wide and comes in a single version.

Product  Model Type Frequency Impedance VSWR Polarization Pattern Connector  RF power  Height /Weight
TA10  VHF Com Antenna –  ‘straight’ type 118 – 137 MHz 50 Ohms nominal 2.0:1 maximum Vertical  Omni-Directional BNC female 30 Watts  523mm / 20.6″ 226g / 8oz



WHAT'S IN THE BOX

  • The TA10 ships with an installation kit, installation guide and an FAA 8130 certification / approval
