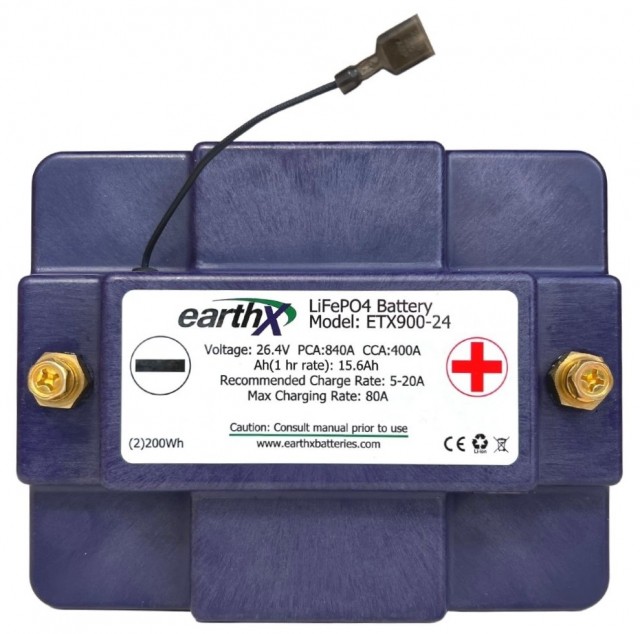

ETX900-24

SPECIFICATIONS

SKU: ETX900-24
Voltage: 26.4
Weight: (4.0kg)
Cold Cranking Amps (CCA): 400
Peak Cranking Amps (PCA): 840
Amp Hour (1C Rate): 15.6
Chemistry:
Case Size: U
Dimensions: 6.5" L x 5.1" W x " H
                    (166mm L x 129mm W x 168mm H)

Designed for piston engines up to 550ci . Max alternator output is 80 amps at 29V or 150 amps at 28.2V. If used for ONE turbine engine, you must have 2 batteries connected in parallel. Contact us prior to buying to verify the proper batteries needed for your TURBINE application, call 970.684.4397 option 3, or techsupport@earthxbatteries.com.

This battery is fully protected by an integrated battery management system (BMS) that protects the cell’s from over discharge, over charge, short circuit, temperature, plus cell balancing to ensure charge levels are equal. Additionally, the ETX-Hundred Series aircraft batteries have redundant electronic circuits and battery fault indication. The fault indicator can be connected into your EFIS or wired to a 24volt LED light on your control panel to alert you to the state of charge and state of health of the battery. (Please see manual for details)

What’s included:

• 1 x ETX900-24
• 2 x 6mm screws with washers and lock washers

LED fault light sold separately

EarthX is USA based engineering company dedicated to continuous improvements to bring you the best possible battery.
