OptiMate PRO-1 DUO

Artikkelnr.: TM650

PRO series: 12V 10A diagnostic battery charger-tester & power-supply

NOK2 365,00 inkl. mva.
Ønskeliste

Produktinfo

OptiMate PRO-1 DUO, the professional combination battery charger-tester & power supply for powersport & small craft / machine professionals, repair shops and battery retailers.

optimate pro 1 duo is ideal to charge & maintain new or used 12V lead-acid (3-50Ah) and 12.8V/13.2V LiFePO4 (2-20Ah) batteriesPRO USE: new or used 12V lead-acid (3-50Ah) and 12.8V/13.2V LiFePO4 (2-20Ah).
NORMAL USE: 12V lead-acid (3-240Ah) and 12.8V/13.2V LiFePO4 (2-120Ah).
optimate pro 1 duo has 3 Selections: select a charge mode for 12V lead-acid OR 12.8V LiFePO4, or PowerSupply mode3 Selections: Select a charge mode for 12V lead-acid OR 12.8V LiFePO4, or select PowerSupply mode for battery support during vehicle diagnostics, tuning or troubleshooting.
optimate pro 1 duo has automatic fast battery activationAutomatic fast battery activation: flashing green test light indicates battery is healthy and sufficiently charged.
optimate pro 1 duo has smart recovery mode for deep discharged batteriesSmart recovery mode for deep discharged batteries, a bad battery is quickly identified, a good battery receives charge is retested after.
optimate pro 1 duo has a pushbutton activated BMS reset for Lithium batteriesPushbutton activated BMS reset for LiFePO4 batteries.
test light indication optimate pro 1 duoTest indication for GOOD (80 to 100%), OK (60 to 80%) and BAD (below 60%) batteries.
PowerSupply mode for vehicle tuningPowersupply mode provides constant power for vehicle tuning, diagnostics and troubleshooting.



MORE FEATURES:



Global input - 100 to 240V 50-60Hz.
AC power socket for Class 2 power cords.
Certification - CE, UKCA, NRTL (UL & CSA), PSE (Japan), SAA (Aus & NZ).

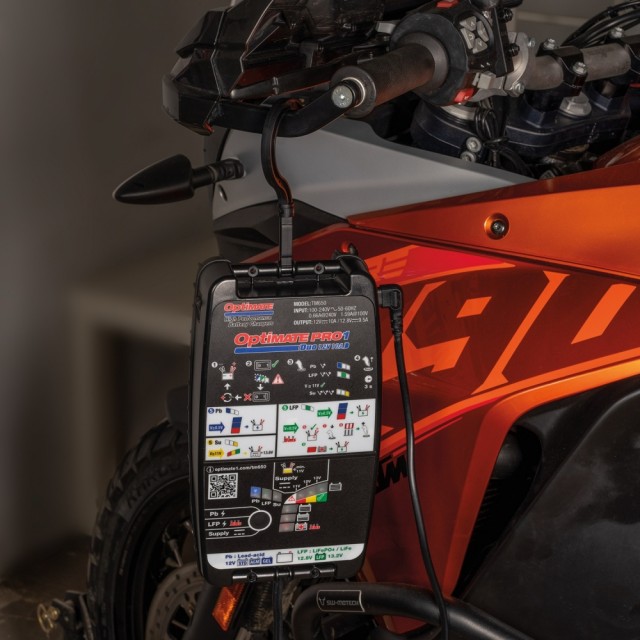

Portable use – Vehicle hanging hook and wall receiver included.
50% less energy, 50% lower cost.
√ Power Factor Correction
√ Synchronous Rectification



IDEAL FOR:

PRO USE: 12V lead-acid STD & AGM from 3-50Ah and 12.8V/13.2V Lithium LFP (LiFePO4) from 2-20Ah.

NORMAL USE: 12V lead-acid STD & AGM from 3-240Ah and 12.8V/13.2V Lithium LFP (LiFePO4) from 2-120Ah.

CHARGING AMPS: 0.4A to 10A variable (Ampmatic)

CHARGING VOLTS: 12V lead-acid: 0.5V to 22V. 12.8V/13.2V Lithium LFP (LiFePO4): 0.5V to 14.4V. Powersupply: 11V to 13.6V.

OPERATION: Selectable

Steps: 11







USE: Indoor rating IP40.

INPUT: Global (100-240V 50-60Hz), high efficiency.

STYLE: Case with rubber bumbers, with wall-mount or hanger bars. AC Class 2 input socket, with ON/OFF switch, 15cm / 6″ output cord.

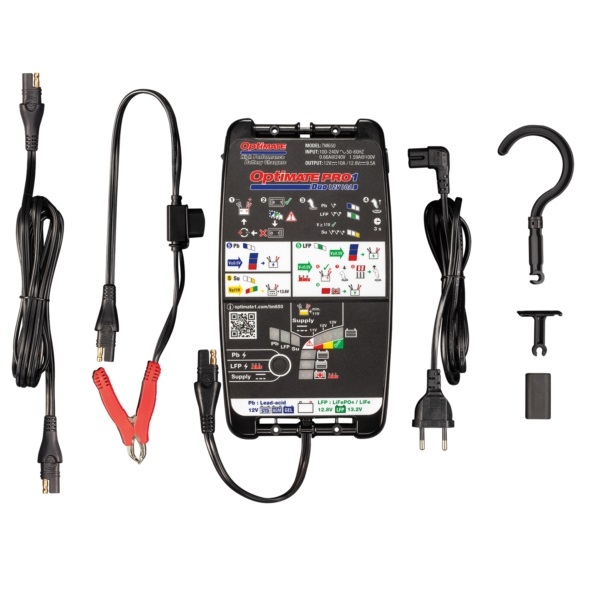

INCLUDED CABLES: Class II AC cord suitable for region, O-43 charge lead extender 180cm/72″ and O-14 fused battery clips.

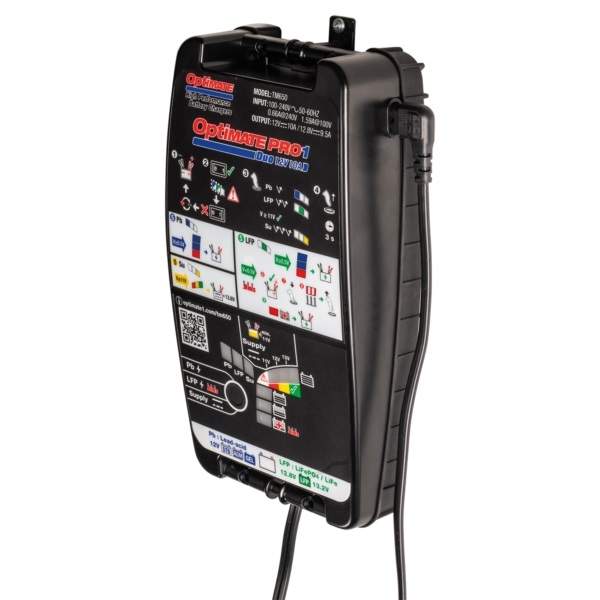

INCLUDED HARDWARE: Wall storage receiver and bar hanging hook.

WARRANTY: 2-year limited repair / replacement warranty.
