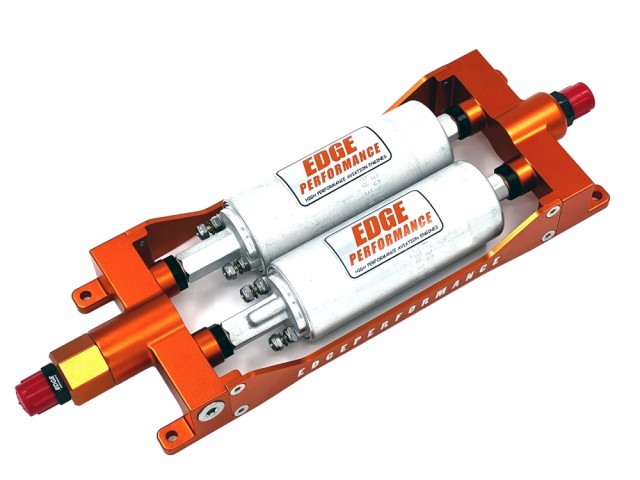

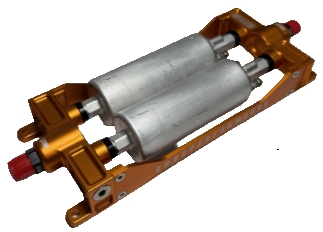

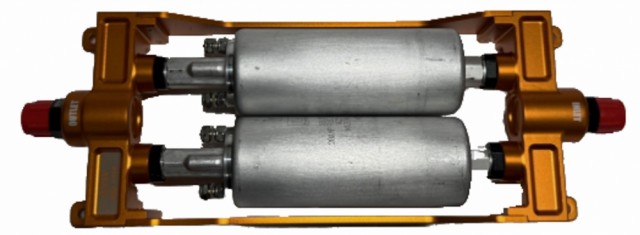

Dual fuel pump w/filter - New Style (912/915/916iS/EFI)

Suits all EFI kits or applications.

Also suitable for 912/915/916iS. (NOTE - Requires AUX pump to be powered off of Gen-B Airframe power)

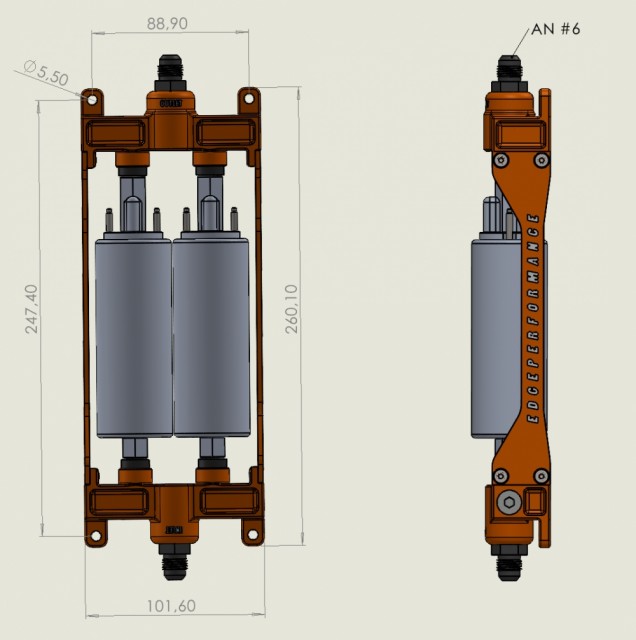

Mass: 1365gr with AN6 Fittings

Pressure tested to 150PSI.

Normal operating pressure is 35-55PSI set on the fuel pressure regulator.

We use a 3-pos switch (ON-OFF-ON) or two induvidual switches (ON-OFF) and run one pump as  main, and the second as a back-up for redundancy.

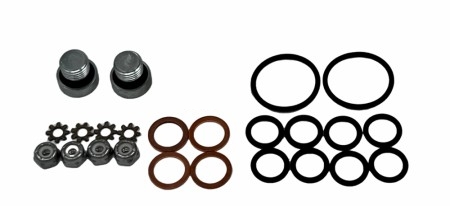

No banjo fittings. Full flow o-ring sealed fittings and intergrated sinter 30 micro filter on the high pressure side. Comes anodized for corrosion protection and great looks. Current draw is 4-5A under normal conditions.
