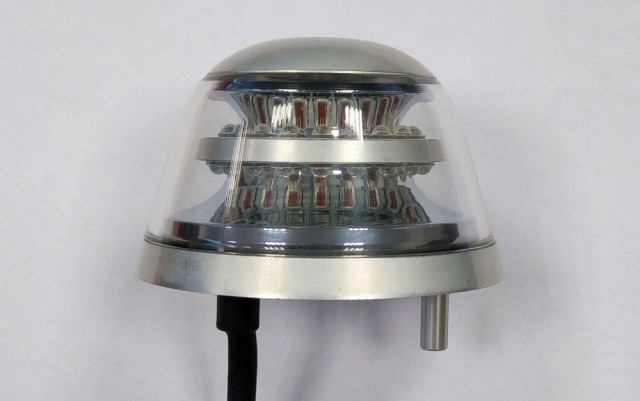

RedBaron XP DayLite Anti-collision Beacon

Artikkelnr.: AV-RBXPDLACL

Anti-collision LED light – Red or White

Ta kontakt via skjemaet under for pris


Forespør et pristilbud for dette produktet:

  • Produktinfo
  • Specs
  • Produktanmeldelser (0)

At only 40 millimeters in height (1.565 inch) the new RedBaron XP DayLite™ is a value light that does not sacrifice anything in performance or standards as other economy – priced lights offered by the competition.

The exclusive and highly advanced optics and chrome reflector system, the unmatched power and led management circuitry and the famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

Dimensions (mm): 64 mm x 64 mm x 39,8 mm
Dimensions (inches): 2.52“ x 2.52“ x 1.565“
Weight: 145 g / 0.32 lb
Operating Voltage Range: 9 – 36 VDC
Input Current – Red Strobe: 4.14A @14V, 2.31A @28V
Input Current – White Strobe: 4.22A @14V, 2.8A @28V
Input Power – Red Strobe: 57.96W @14V, 64.68W @28V
Input Power – White Strobe: 59.10W @14V, 78.53W @28V
Repetition Rate of Strobe: 50 cycles per minute
Recommended size of mounting screw: M5x50mm or equivalent (Torque 3.0 Nm [2lb ft])
Ambient Temperature: from -55°C to +85°C
from -55°F to +185°F
Overheat Protection: Yes (+85°C / +185°F)
Reverse Polarity Protection: Yes
Transient Voltage: 60V, both polarities
Under-Voltage Protection (lockout): Yes (9V)
Over-Voltage Protection (lockout): Yes (36V)
Waterproof, Dust-proof, Shock-proof, Vibration-proof: Yes
