AVEO EYE BEAM TOUCH NVG SILVER

Artikkelnr.: A11-08444

NOK2 895,00 inkl. mva.
Ønskeliste

Produktinfo

Overview

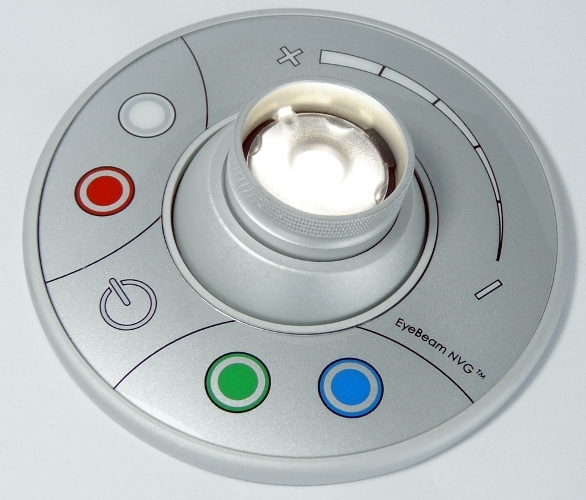

The Aveo EyeBeam Touch™ capacitive sensing controlled cockpit and cabin lights in NVG configuration, that is they include green LED lighting compatible with night vision equipment. Also included with the NVG model EyeBeam is the standard faceplate locations of white, red and blue LEDs too, so whatever your operational conditions there is a lighting option to match it available from this amazing product.

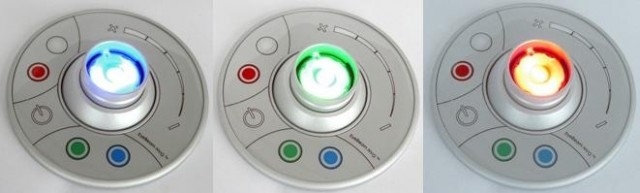

With one light finger touch you can control power, white LED, red LED, green LED, blue LED or the brightness slider scale easily with no mechanical switches to fail and no bulbs to burn out.

The EyeBeam NVG™ also features as standard in its firmware automatic light dimming to OFF and automatic ON for the light when coupled to a door microswitch sensor. With a standard 2 minute delay programmed in.

Cockpit and cabin lighting, especially on aircraft, helicopters, boats, recreational vehicles and trucks are plagued by problems from vibration.... the EyeBeam overcomes this with a vibration-proof product

For Experimental Use Only

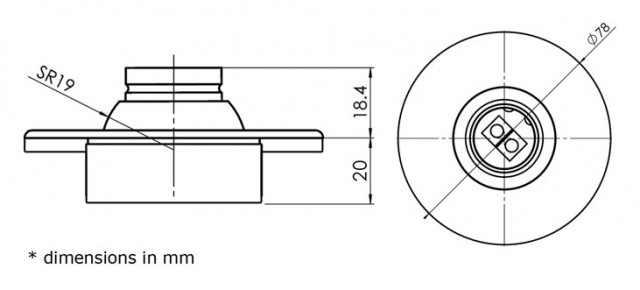

Download the Drawing (PDF)

Features

  • 9-32 volt input range
  • No external power supply
  • Swiveling light permits light beam control
  • Capacitive sensing touch controls
  • No mechanical switches to fail
  • Unmatched circuit technology
  • Limited 3yr Warranty - Product must be registered within 30 days of purchase Here

Specifications

  • Power supply: 9-32 Volts
  • Current consumption: 230 mA @ 12 Volts
  • Capacitive Sensing Interface with LED backlighting
  • 9 Incremental steps capacitive sensing slide bar for brightness adjust
  • Swiveling Beam
  • 2024 Anodized Aluminum Construction
