AVEO HERCULES JP TAXI / LANDING LIGHT

Artikkelnr.: A11-18202

NOK3 790,00 inkl. mva.
  • Produktinfo
  • Produktanmeldelser (0)

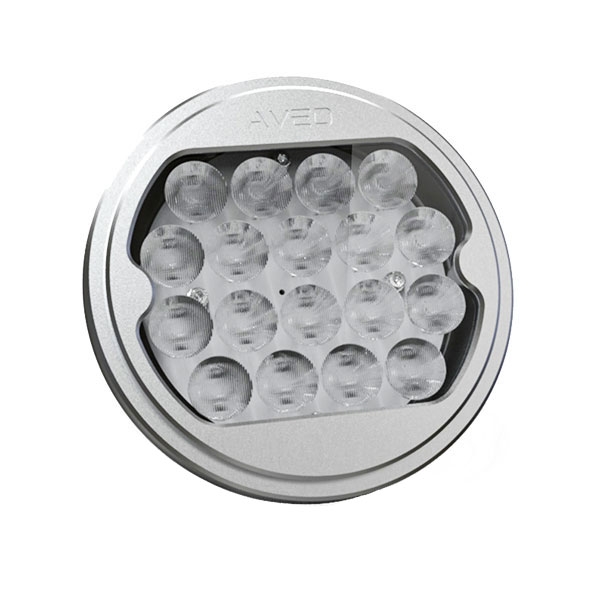

Aveo Hercules JP landing and taxi lights combine high intensity and affordability. Choose from 6 anodized finishes to enhance your paint scheme. Available with either landing or taxi lenses, optimized for superior illumination.

Simple installation -- "Drop In" upgrade for legacy lights. High performance. PAR 36

Drawing

Specifications

  • Dimensions (mm): 111.5 mm x 44 mm
  • Dimensions (inches): 4.39“ x 1.73“
  • Operating Voltage Range: 9 – 32 V DC / Input Current: 4.5 A @14V / 2.3 A @28V
  • Output Power: 54 W
  • Landing Lens Angle: 8° Landing
  • Taxi Lens: 9° x 20° Taxi
  • Intensity (Landing): 100,000 cd
  • Intensity (Taxi): 51,000 cd
  • Ambient Temperature: from -55°C to +85°C (from -67°F to +185°F)
  • Overheat Protection: Yes
  • Transient Voltage: 100 V max
  • Over-Voltage Lockout: +32VDC, not less
  • Reverse Polarity Protection: Yes
  • Useful Life: not less than 30,000 aircraft flight hours
  • Waterproof, Dust-proof, Vibration-proof: Yes
