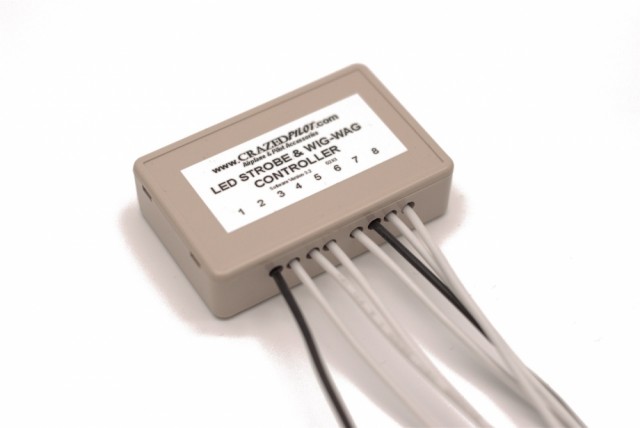

Simple 12 volt installation! A crazy-bright low current WIG-WAG MODE (LEFT/RIGHT pattern) that gets a LOT of attention - then switch on the triple-pulse STROBE MODE to really catch their eyes. On landing approach change to LANDING LIGHT MODE which turns the lights on constant.
Pair with any of our provided LED lighting products to custom build your own integrated Wig-Wag, Strobe, and Landing Light system!
DO NOT USE this controller with CREE lights, they are not compatible.
Controller Dimensions: 2.75" x 2.15" x 0.9" including the green connectors (70mm x 55mm x 23mm)
Max Current Draw: 5 amps LEFT channel, 5 amps RIGHT channel. This means you can drive up to 20 of our 22 LED lamps EACH SIDE! Or 30 of our Bullet LEDs ON EACH SIDE!
INSTALLATION DIAGRAM AND INSTRUCTIONS PDF - CLICK HERE TO VIEW.
You will need to supply your own switches to activate each of the 3 modes. We do not supply nor recommend a specific type of switch. All you have to do is get 12V to the lights via switches in whatever way you see fit - could be 3 push buttons, 3 individual switches or 1 rotating (multi-position) switch in order to select each of the 3 modes as necessary.
NOTE: For experimental aircraft only.
LIABILITY RELEASE/DISCLAIMER:
This product to be used for lighting controls only. As the pilot in command you are accepting all responsibility for the safety of your aircraft, those onboard, and persons or property on the ground. CRAZEDpilot makes no representations of warranties, either expressed or implied, by or concerning any content of these written materials and in no event shall be liable for any implied warranty for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits or business interruption) arising from the use or inability to use these written materials or equipment.
