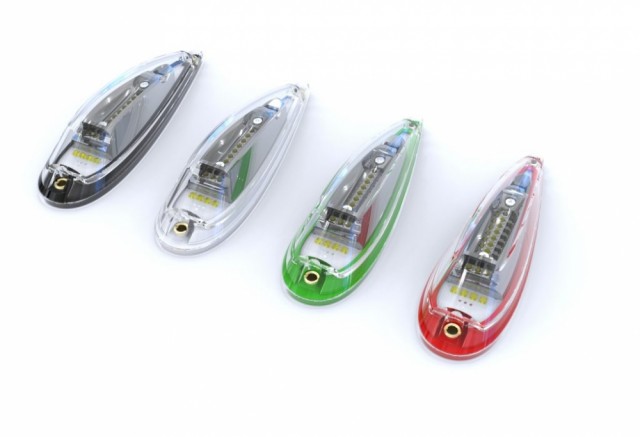

Aveo PowerBurst NG DayLite

Artikkelnr.: AV-PBNGDL

At only 26 millimeters in height (1.024 inch) the new PowerBurst NG™ DayLite is a value light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition.

NOK6 649,00 inkl. mva.
På lager: 1 stk.
  • Produktinfo
  • Specs
  • Produktanmeldelser (0)

The exclusive and highly advanced optics and chrome reflector system, the unmatched power and LED management circuitry and the famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

Dimensions (mm): 115 mm x 33 mm x 26 mm
Dimensions (inches): 4.547” x 1.302” x 1.024”
Weight: 70 g / 2.47 oz
Operating Voltage Range: 9 – 18 V DC
Input Current – Position / Nav - green (@14V): 0.28 A
Input Current – Position / Nav - red (@14V): 0.23 A
Input Current – Strobe (@14V): 2 A peak
Output Power - Position / Nav - green: 3.3 W
Output Power - Position / Nav - red: 2.5 W
Output Power - Strobe: 24 W peak
Repetition Rate of Strobe: 50 cycles per minute
Recommended size of mounting screw: M3 / DIN 7984, stainless steel recommended. Length depends upon placement location on wing tips.
Torque requirement for screw M3 / DIN 7984: 0.5 Nm
Ambient Temperature: from -40°C to +85°C
from -40°F to +185°F
Overheat Protection: Yes
Reverse Polarity Protection: Yes
Transient Voltage: No
Under-Voltage Protection: No
Over-Voltage Protection: No
Waterproof, Dust-proof, Shock-proof, Vibration-proof: Yes
