Dobbel USB A m/pigtail

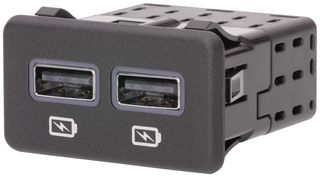

Description: In-Vehicle Dual Port USB Smart Charger with Backlight, 2.4A. Comes with a 1.5m pre-wired pigtail cable

General Product Family I/O Connectors

Series 68532

Application Module-to-Wire Component

Type USB Charger

Overview In-Vehicle

Smart Charging Modules

Product Literature Order No 987651-6673

Product Name Mini50™, USB Type A

UPC 191128149372

Physical Circuits (Loaded) 2

Circuits (maximum) 4

Color - Resin Black

Durability (mating cycles max) 10000

Lock to Mating Part Yes

Material - Plating Mating N/A

Material - Resin ABS

PC Net Weight 38.812/g

Number of Rows 1

Orientation Vertical Packaging

Type Bag Panel Mount Yes Pitch

Mating Interface N/A

Polarized to Mating Part Yes

Ports 2

Temperature Range - Operating -40°C to +85°C

Termination Interface: Style N/A

Electrical Current - Maximum per Contact 2.4A Voltage - Maximum 16V DC

Material Info Reference - Drawing Numbers Sales Drawing 685324462-000
