Dobbel USB A og C m/pigtail

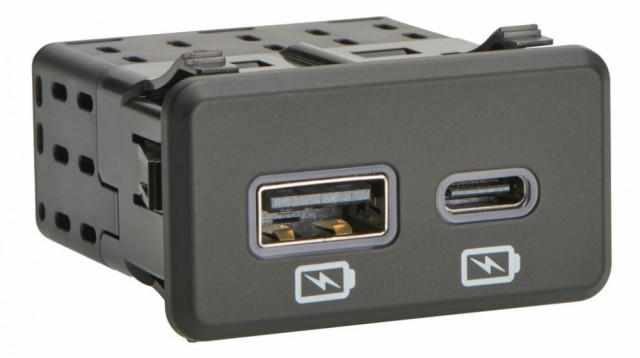

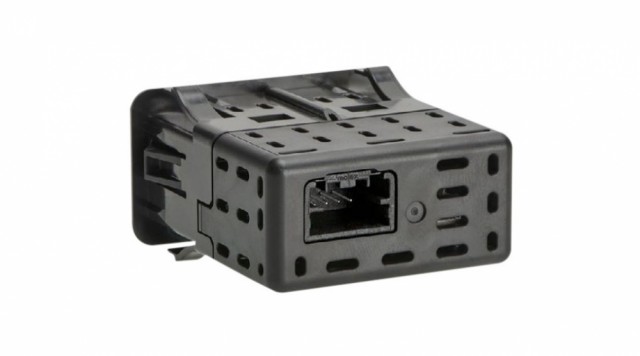

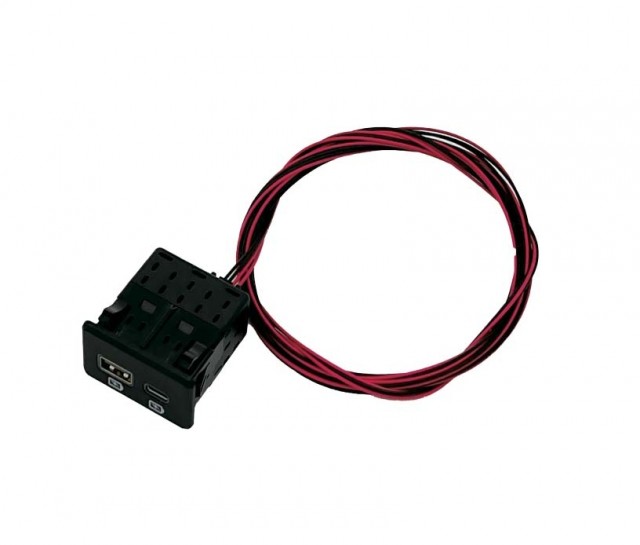

Description: In-Vehicle Dual Port Smart Charger, USB Type A and C, with Backlight, 3.0A USB-C / 2.4A USB-A. Comes with a 1.5m pre-wired pigtail cable

General

Product Family I/O Connectors

Series 79540

Application Module-to-Wire Component

Type USB Charger

Datasheet Order No 987651-6673

Overview In-Vehicle Smart Charging Modules

Product Name Mini50, USB Type A, C

UPC 191128872768

Physical Circuits (Loaded) 2

Circuits (maximum) 4

Color - Resin Black

Durability (mating cycles max) 10000

Lock to Mating Part Yes

Material - Plating Mating N/A Material - Resin ABS, PC

Net Weight 43.431/g

Number of Rows 1

Orientation Vertical

Packaging Type Bag

Panel Mount Yes

Pitch - Mating Interface N/A Polarized to Mating Part Yes

Ports 2 Temperature Range - Operating -40° to +85°C

Termination Interface: Style N/A

Electrical Current - Maximum per Contact 2.4A, 3.0A

Material Info Reference - Drawing Numbers

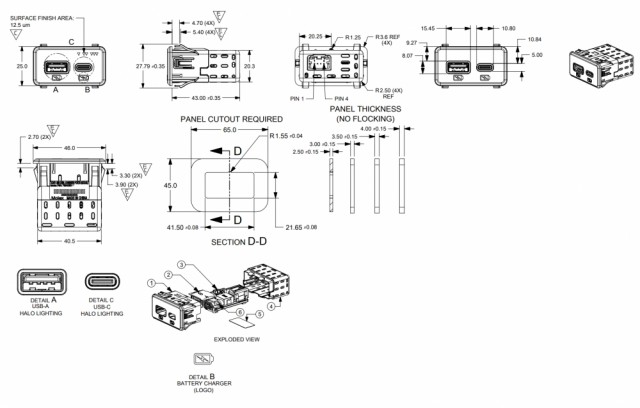

Sales Drawing 795405067-000
