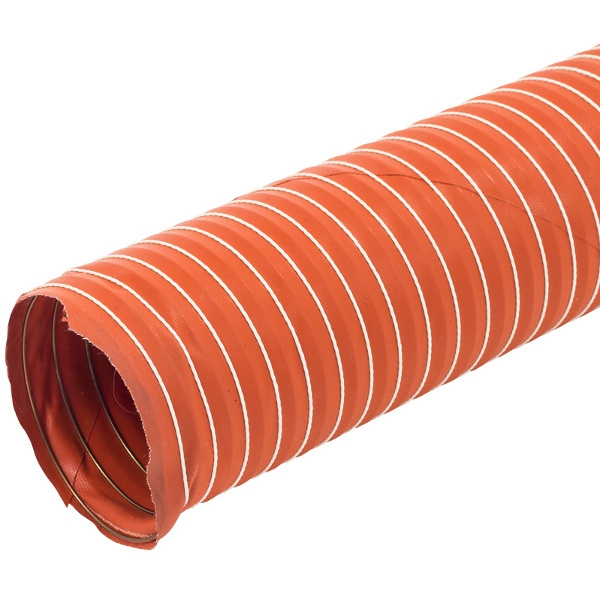

2-1/4" / 57mm Scatslange

Artikkelnr.: 57

NOK208,00 inkl. mva.
Ønskeliste

Produktinfo

Overview

Sold by the foot.


The flexible hose Vena® HT has excellent flexibility and excellent aging resistance.

Applications


These kind of flexible hoses are specially recommended in gas conductions at high temperatures, engine exhaust fume extraction from a point immediately close to the ejection area, electronic units cooling and welding gas aspiration.
  • Hot air extraction in ceramic kilns.
  • Airplane or helicopter cockpit heating.
  • Ventilation and air-conditioning in boats.
  • Protection of electric cables passing through extremely hot areas.
  • Sheathing of pipework transporting hot air.

Construction


This product is manufactured with one fiber glass reinforcement with high temperature resistance silicone rubber. The inner part is coated with visible steel wire.

Temperature


Operational temperature range from -55ºC (-67ºF) to +260ºC (+500ºF). It may reach up to 300ºC (+572ºF) during short periods of time.

Certifications

  • The fiber glass covered with silicone rubber doesn’t contain heavy metals or any fireproof substance.
  • The fiber glass covered with silicone rubber in compliance to EU Directive 2002/95/ECC of restriction of the use of certain hazardous substances (RoHS)
  • FAR/CS 25.853 Appendix F, Part I (a)(1)(ii)&(iv)"Vertical & Horizontal flammability test"
  • AIRBUS DIRECTIVE ABD0031 and AITM 2.0007 B "Optical density test"
  • AIRBUS DIRECTIVE ABD0031 and AITM 3.0005 "Smoke and toxicity test"

Available Sizes


Stock diameter listed in ordering grid. Diameters not listed are available as a special order in full lengths only. Full factory lengths are up to 13 ft. Varies by warehouse. For lengths over 13 ft, contact sales to confirm availability.
