5 års slange kit Rotax 912 (Forenklet)

This rubber replacement kit for the Rotax 912 engine furnishes the parts most commonly needed for the 5 year service requirement. This kit was developed for the Flight Design CT. For other aircraft, re-measure the fuel, oil, and coolant lines for lengths needed on different installations. If other lengths are needed, contact CPS before ordering as the parts will need to be ordered individually instead of the kit part number.

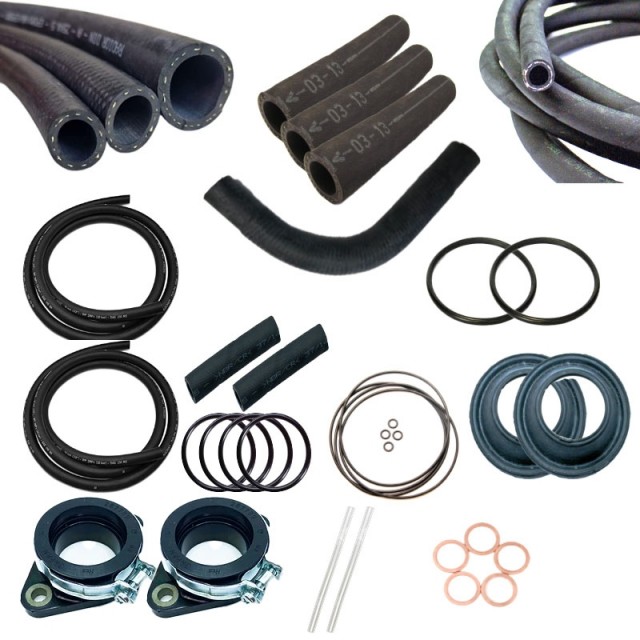

• Kit Contents:
• 1″ RADIATOR HOSE: Qty 1m / 3 ft
• 12.5MM OIL HOSE: Qty 3m / 10 ft
• 1/4″ FUEL INJECTION: Qty 3m / 10ft
• 5/16″FUEL INJECTION: Qty 4m / 12ft
• ROTAX 922-250 WATER HOSE: Qty 3
• ROTAX 922-192 WATER TUBE: Qty 1
• ROTAX 267-789 RUBBER FLANGE: Qty 2
• ROTAX 230-300 O-RING 47-2: Qty 2
• ROTAX 956-143 TUBE 66 MM: Qty 2
• ROTAX 861-115 DIAPHRAGM: Qty 2
• ROTAX 230-910 O-RING 34X2: Qty 4
• ROTAX 881-920 O-RING SET : Qty 1
• ROTAX 950-143 BRASS GASKET: Qty 5
• BING VENT TUBE : Qty 2
