Engine Preheat Kit - 4 Cyl Continental and Lycoming (STC) - 230V

STC Engine Preheat Kit for 4 Cylinder Continental and Lycoming engines
FAA-STC: # SE03232CH

TCCA acceptance of FAA-STC on file.
EASA-STC: # 10054417

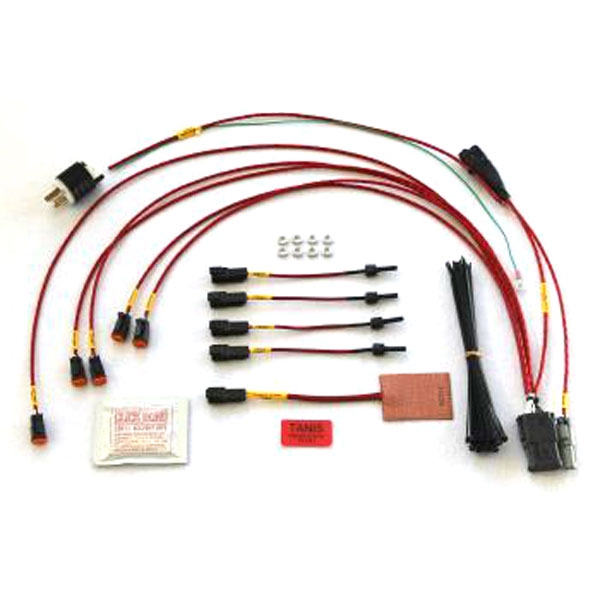

This preheat kit contains threaded heat elements located in each cylinder assembly, (intake bolt or rocker cover screw replacement) and one pad heat element on the engine crankcase/oil sump/tank. This multipoint configuration fully preheats the engine and attached accessories. Power is routed to the elements through a dedicated wiring assembly with LED system power indication and circuit overload protection standard. The system is self-regulating through design. Heated components reach an average state of thermal equilibrium in approximately six hours.  Refer to our Frequently Asked Questions or Why Tanis or Contact us for additional information.

This preheat kit is compatible with all engine monitor systems as the threaded heat elements can replace either a rocker cover screw or intake bolt fasteners.

This preheat kit when installed will supply 240 watts with a 1.0 amp draw at 230 volts.

* Required Bonding sealant sold separately. Quantity 1, PN: TU02788

Contact us for more information on Legacy systems that may be available.

“Not eligible for Rotorwing aircraft (helicopters).”
