Install Kit for installing an avionics/cabin heater on most part 23 and 27 aircraft.
This kit is intended to install the cabin heater on an Aircraft with a Engine preheat or aircraft preheat system already installed.
Modification and additional parts may be required in some cases.

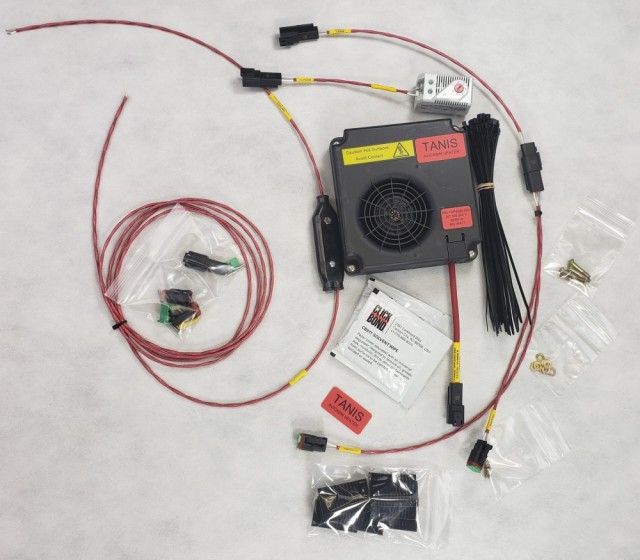

Includes all parts that are needed for a basic install:
– AV Heater, THP3094-001 (same as THP3094-500 but has no feet installed and no extra cord)
– Adjustable thermostat, TLP3235
– Cabling/wiring with fuse protection, TC03164 and TC03246-A
– Mounting options/hardware See Drawing 03323 for included items.
Note: Standard consumables not included. Additional plugs, receptacles, connectors, and firewall passthroughs available as options but should not be required for standard install.
Note: Installation on eligible aircraft may not require field approval if the installation conforms to instructions.
Note: Kit may be installed on aircraft not listed in the supplement based on similar aircraft model, through logbook entry and/or field approval form 337.
