Tanis pre-heater Rotax 912/914/915

Engine Preheat Kit for 4 cylinder Rotax 912/914/915 (all models)

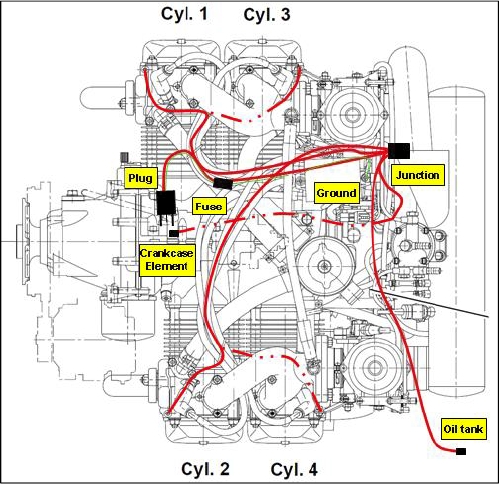

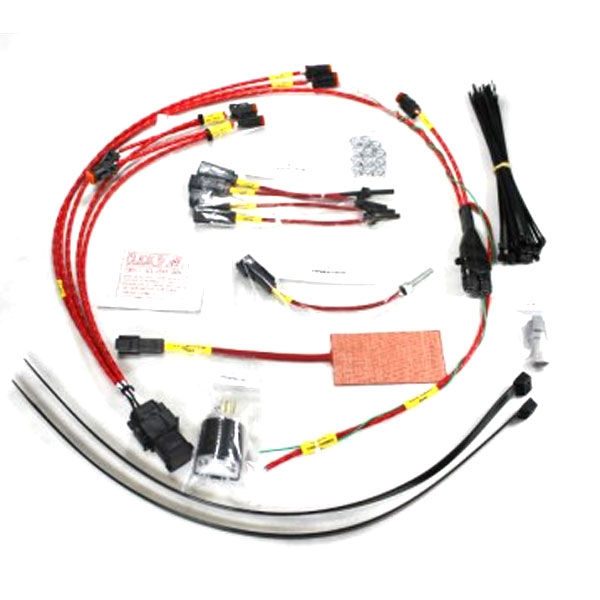

This preheat kit contains heat elements located in each cylinder assembly, one threaded heat element on the engine crankcase (prop reduction gearbox or oil pump area) and a pad heat element bonded on the oil tank. This multipoint configuration fully preheats the engine and attached accessories. Power is routed to the elements through a dedicated wiring assembly with system power indication circuit overload protection and plug mounting options. System is self-regulating through design. Heated components reach an average state of thermal equilibrium in approximately six hours.

This preheat kit when installed will supply 220 watts with a 1.0 amp draw at 230 volts.

* Required Bonding sealant sold separately. Quantity 1, PN: TU02788

Old Part number: TAS100-52-230
